| US$250,000.00 | 1 Set (MOQ) |

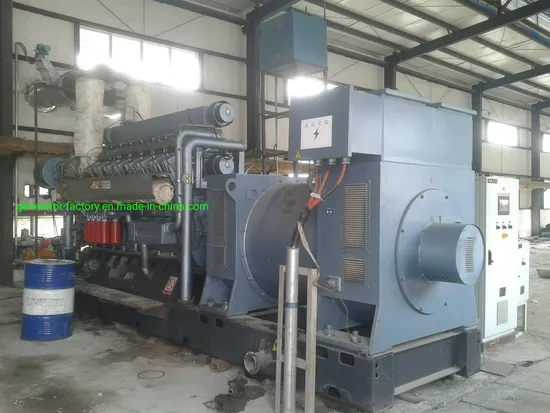

| Engine type | 16V190 series | |
| Working principle | 4-stroke, with turbocharger, intercooler with electric air/fuel mixing system | |
| Configuration | Vee 60° | |
| No. of cylinders | 16 | |
| Bore | mm | 190 |
| Stroke | mm | 210 |
| Total displacement | L | 95.27 |
| Rated speed | rpm | 900-1200 |
| Idle speed | rpm | 700 |
| Air filter type | Dry type, screw type replaceable filter element | |
| Rated power | kW | 800-1200 |
| Stable speed drop | % | 0-5 (adjustable) |
| Cooling method | Forced water cooling | |
| Lubricating method | Pressure and splashing | |
| Filling capacity of cooling water | L | High temp. circulation:400 Low temp. circulation: 400 |
| Filling capacity of lube oil | L | 340 |
| Cylinder serials number | Flywheel on left (bird view) | 1- 2- 3- 4- 5- 6- 7- 8 9-10-11-12-13-14-15-16 |
| Ignition method | Spark Plug Ignition | |
| Ignition order | ||
| Starting method | 24VDC electric motor | |
| Direction of Rotation | Facing flywheel | Counterclockwise |
| Mechanical power output end | Flywheel output | |
| Length | mm | 3670 |
| Width | mm | 1650 |
| Height | mm | 2710 |
| Weight empty | kg | 15000 |
