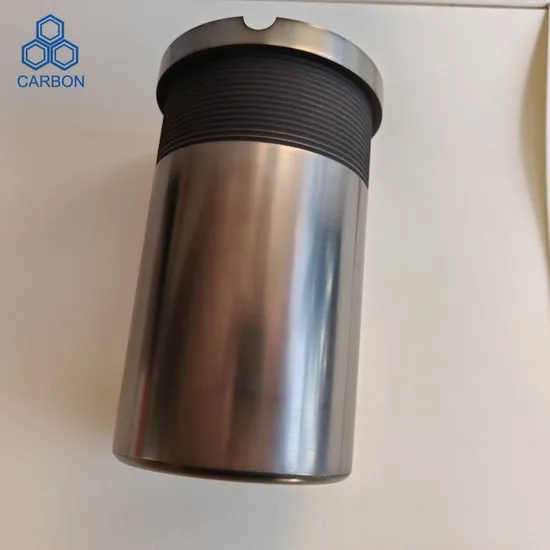

Factory Price Graphite Crucible for Melting Precious Metal Gold Melting Crucible

Product Description

What is graphite crucible?
A graphite crucible is a container used for melting and casting non-ferrous, non-iron metals such as gold, silver, aluminum, and brass. Their thermal conductivity, high temperature resistance, small thermal expansion coefficient for high temperature applications, and anti strain properties to rapid heating and cooling make graphite crucibles an ideal metal casting solution. They are resistant to the effects of acids and alkaline solutions and have excellent chemical stability.
Why does graphite matieral suitable for smelting and casting for jewelry industry and other industry?
The crucible is made from high quality graphite which makes the graphite crucible to have a good thermal conductivity, resistant to acidity and alkalinity and a high temperature resistance, therefore, ensuring quality of products.
Graphite crucibles do not contaminate molten metals because the graphite material is fused and does not loosen. The quality of a graphite crucible is determined by how it is manufactured, which influences its structure, density, porosity, and strength.
As the graphite has an excellent heat performance, the time spent on melting is short, therefore saving energy.Their excellent heat performance helps in melting metals quickly for faster production cycles.

Since graphite crucibles are resistant to chemicals and corrosion, they are not affected by workshop conditions, characteristics that make them durable and long lasting.
So graphite crucible is suitable for foundries, jewelry industry and other industries where metal melting and casting is necessary.
Features:
Technical Data of Graphite Material:
Isostatic Graphite

Property	KBD-5	KBD-6	KBD-7	KBD-7B	KBD-8	Unit
Apparent Density	1.85	1.90	1.82	1.82	1.90	g/cm3
Max Grain Size	13-15	8-10	8-10	13-15	8-10	µm
Ash value	≤500	≤500	≤500	≤500	≤500	ppm
Specific Electrical Resistivity	8-10	8-9	11-13	11-13	11-13	μΩm
Flexural Strength	46	55	51	59	60	Mpa
Compressive Strength	85	95	115	121	135	Mpa
Shore Hardness	48	53	65	70	70	HSD
Thermal Expansion (room temperature to 600ºC)	4.75	4.8	5.8	5.8	5.85	10-6/ºC

Molded Graphite

Property	KBG-4	KBG-5	Unit
Apparent Density	≥1.80	≥1.85	g/cm3
Ash value	≤500	≤500	ppm
Shore Hardness	≥40	≥45	HSD
Specific Electrical Resistivity	≤12	≤12	μΩm
Flexural Strength	38	41	Mpa
Compressive Strength	81	87	Mpa
Max Grain Size	25	25	μm

Vibration Graphite

Property	TSK	GSK	Unit
Apparent Density	≥1.70	≥1.72	g/cm3
Max Grain Size	≤2	≤0.8	mm
Specific Electrical Resistivity	8-10	≤8.5	μΩm
Flexural Strength	≥12.5	≥15	Mpa
Compressive Strength	≥28	≥35	Mpa
Porosity	≤24	≤20	%
Ash value	≤0.3	≤0.3	%

Strict Quality Control Ensures High Quality Products
Safe Packing
Question and Answer:
Q:Are you a manufacturer or trading company?A:We are a manufacture for graphite material and graphite machined products.Q:How can you gurantee the quality?A:We have the most advanced equipments in our Lab and professional quality control team.We can gurantee each batch of the product with the stable quality.Q:Can you offer samples?A: Yes, we offer samples to testQ: Delivery time?A:Around 10 days.
Q: Shipping potA: Tianjin or main port in ChinaQ:Payment termsA:T/T,LC at sight

---
