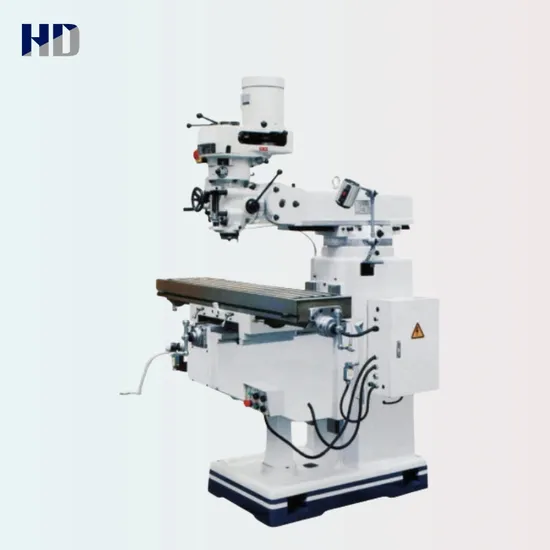

| ITEM | X6332W |
| Spindle taper | 1S040(V)ISO40(H) |
| Diameter of quill | 95mm |
| Disance from spindle to table | 90-490mm |
| Distance from horizontal spindle to table | 0-380mm |
| Disance from spindle to column | 200-700mm |
| Spindle speeds | (16step)60-4540r.p.m(V)40-1300r.p.m(H) |
| Spindle travel | 127mm |
| Feeding of quill | (3step)0.04 0.08 0.15 |
| Max.drilling capacity of auto-feeding | Ф 14mm |
| Head movement | +45° |
| Table size | 1370x320 mm |
| Table travel(Horizontal/Cross/ Vertical) | 750/320/400mm |
| Feeding range of longitudinal.cross tracel | 22-555mm/min |
| X,Y-axis Rapid feed speed | 1080mm/min |
| Z-axis rapid feed speed | 590mm/min |
| Z-axis motor power | 750W |
| Max.weight of workpiece | 300kg |
| T-solt Number/width/distance | 3/14mm/70mm |
| Horse power for main motor | 3HP(V)2.2KW(H) |
| X,Y axis driving motor | 750W |
| Overall dimension | 1700x1500x2150mm |
| Packing size | 1680x1600x2250mm/2300x1600x2250mm |
| N.W./G.W. | 1650/1750kg(3200/3500kg) |
