Tire Recycling Rubber Powder Production Line/Waste Tire Recycling Machinery

Product Description

Tire Recycling Rubber Powder Production Line/Waste Tire Recycling Machinery
Name :Waste tire recycling machine,Waste tyre recycling machine,Tire shredder,Tyre
shredder,Tyre crusher,Tire crusher,tyre recycling line
Application: Crush the waste tire into rubber powder with advantage of environmental protection and energy saving, bright market prospect.
1. Tire Cutter: It is the first process of reclaiming waste tire, used to separate among the tire crown, side-wall and bead.
Highlights: The blade is excellent hardened alloy for wearing-resistance and long life.
Parameter:

Production Capacity (Pieces/Hour)	60-80
Motor Power (KW)	3
Motor Rotating Speed (R/Min.)	1440
Dimension (MM)	1300x900x1200
Weight (KG)	300

2. Strip Cutter: It is mainly used in cutting the crown and side-wall of waste tire into certain width of rubber strip.

Highlights: The two disc knife adopts special metal heat treatment with high hardness and durability.
Parameter:

Production Capacity (KG/Hour)	1500-2000
Motor Power (KW)	5.5
Motor Rotating Speed (R/Min.)	1440
Model of Reducer	350
Reduction Ratio	31.5
Size of Discharged Materials (MM)	20-50
Dimension (MM)	1300x700x1500
Weight (KG)	670

3. Block Cutter: It is mainly used to cut the rubber strip in to block.
Highlights: The blade adopts excellent hardened alloy for wearing-resistance and long life.
Parameter:

Production Capacity (KG/Hour)	1200-1500
Motor Power (KW)	7.5
Motor Rotating Speed (R/Min.)	1440
Size of Discharged Materials (MM)	20-50
Dimension (MM)	750x750x1200
Weight (KG)	420

4. Bead Wire Separator: It is mainly used in separating rubber and steel wire of bead.
Highlights: Easy operation, Simple Maintaince.
Parameter:

Production Capacity (Pieces/Hour)	70
Motor Power (KW)	15
Motor Rotating Speed (R/Min.)	1440
Model of Reducer	400
Reduction Ratio	40.17
Dimension (MM)	1500x900x1400
Weight (KG)	1300

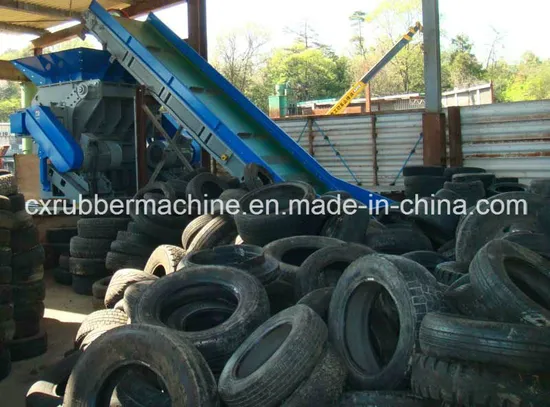

5. Transportation System: Belt Conveyor + Vibrating Sieve + Magnetic Separator.
6. Rubber crusher Machine:
Main Features:
a. Grooved & Smooth Roller: Chilled casting iron alloy.
b. Emergency brake device: Manual and automatic.
c. Famous motor.
d. Durable transmission system.
e. Esay assembly and operation.
f. CE, ISO approved.
Parameter:

Parameter \ Model	XKP-560	XKP-450	XKP-400
Front roller diameter (MM)	560	450	400
Back roller diameter (MM)	510	450	400
Roller length (MM)	800	650	600
Front roller surface speed (m/min)	25.56	23.2	17.32
Friction ratio	1:1.3	1:1.38	1:1.38
Max. nip	15	8	8
Feeding capacity (KG/H)	1500	600-800	200-300
Motor power (KW)	75	55	45
Measurement (MM)	5064x2284x1978	4770x1846x1835	3950x1800x1780
Weight (KG)	19000	19000	19000

Note: 1. For rubber cracker, there are three types, you can seletct the suitable one as the output requirement. 2. For grinder, if final rubber powder bigger than 30 mesh, no need to equip it. If the powder less than 30 mesh, need to equip it. And the quantity depends on the output.

Sl. No.	Description	Model No.	Quantity
1	Ring cutter	QQJ-20	1
2	Strips cutter	QTJ-380	1
3	Rim cutter	QKJ-45	1
4	Loop machine	YQJ-285	1
5	Conveyor equipment	BSJ-1100, XSJ-600	2
6	Rubber cracker	XKP400/XKP450/XKP560	1
7	Magnet separator	BCX-2, XCX-1	2
8	vibrating screen	BS-8, XS-4	2
9	Nylon separator	XFJ-1100	1
10	Rubber grinder	XMF-270/330/420	1

FAQ-Problems of customer concern:
About machine performance quality 1. Q: How to guarantee the quality of outsourcing parts? A: First choice more than 4 suppler by tender, There are strict system and process for inspecting outsourcing parts. And there are outsourcing inspectors, after inspection, qualified goods, labeling and storage. Not qualified, return.2. Q: Which brand of electric part? A: Use world famous brands, Siemens, Omron, Toshiba, Schneider, ABB Customer can specify the brand.3. Q: Which PLC: A: Siemens, Omron, Mitsubishi4. Q: How to control the quality? A: There are inspectors for inspecting equipment quality and performance, after a ssembly, machine run continuously for at least 12 hours at one time, Total running time should be not less than 48 hours.About installation1. Q: When the guide engineer arrive at customer's factory? A: If need installation on site, engineer will arrive at factory within one week after machine arrived at factory.About after-sales service1. Q: What is the warranty time? A: 5 years after machine arrived at factory2. Q: How to solve the problem? A: Within half an hour after getting customer' problem, inform the solution way, there are three ways for different conditions. 1, Which can be solved by phone or Email, it will be solved in two hours. 2. Which can be solved by Remote Control, it will be solved within four hours(machine is equipped by Remote Network Control Problem). 3. Which need solve it on site, engineer arrive at factory within one week(in the two years warranty date, engineer has the visa any time of the country where the machine.

---
