ASTM D2570 Simulated Service Corrosion Testing of Engine Coolants Tester

Product Details

Product Description

Product Description

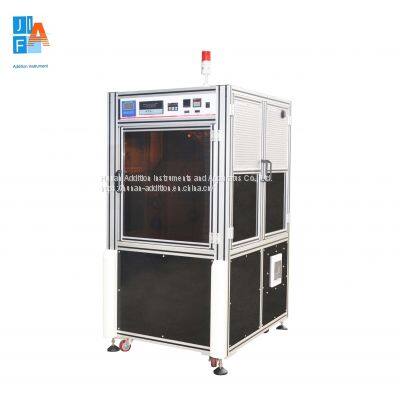

Simulated Service Corrosion Testing of Engine Coolants Tester
ASTM D2570
Product model: JF0088
Product Introduction
In a closed system consisting of a reservoir, a water pump, a radiator and a rubber tube, the sample was circulated for 1064 hours at 88°C and a certain flow rate. The weight loss of the sheet and the visual inspection of the state surface of the inner surface of each component are determined, and the performance change of the sample is determined by analyzing the sample taken from the system periodically during the test cycle.
Technical Parameter
1. Applicable standard: ASTM 2570 SH/T0088
2. Environmental requirements: 20℃～25℃ humidity<60%
3. Fuse: 20A
4. Temperature control accuracy: ±3℃
5. Resolution (measurement): 0.1℃
6. Temperature control range: normal temperature~88℃
7. Flow range: 0～95L/min
8. Flow control accuracy: ±5%
9. Working power supply: AC220,240V 50,60HZ
10. Power of the whole machine: 7KW
Performance characteristics
1. The instrument consists of operation and display, heating control, speed control, pressure control, flow control system and supporting components;
2. Motor: used for coolant circulation drive, linked with water pump;
3. Water pump: provide the circulating flow required by the standard;
4. Condenser: reduce the test pressure and simulate the working conditions of automobiles;
5. Metal test piece: simulate metal corrosion conditions;
6. Reservoir: Provide catalytic effect;
7. Glass tube: observe the circulation state of the sample;

---
