High Quality Made in China Koparka RS Excavator

Product Description

1, Features :

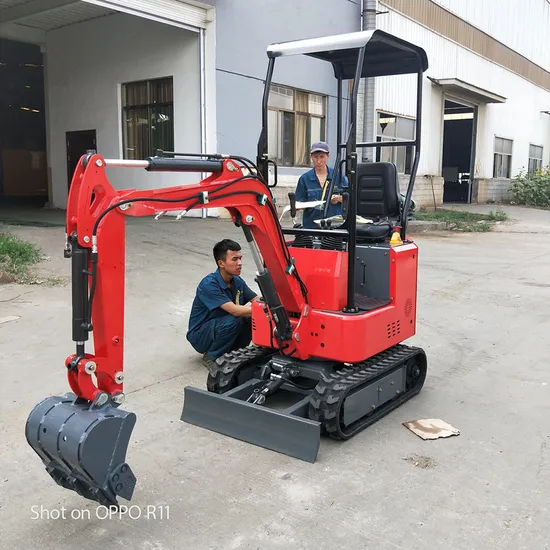

This HQ10 min excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
2, Specifications :

Operating Weight	1000kg
Digging bucket capacity	0.025cbm/120kg
Digging bucket width	350mm, can add narrow bucket is 200mm
Engine	CHANGCHAI or EPA 4 engine
Rated power	8.0kw or 10KW
Displacement	0.211 L
MAIN DEMENSIONS
Overall dimension( LxWxH)	2800x960x1500 mm
Total length of track on land	1090mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	946 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Digging height	2490 mm
Max. Dumping height	1850 mm
Min. Rotation radius	1190 mm

3, Advantages introduction :
4, Professional Loading and Packing
5, Exhibitions of Haiqin Machinery
6, Certificate of Haiqin Machinery
7, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
8, Warranty and Service.
HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!

---
