Hydraulic Disc Harrow Tractor Trailed Heavy Duty Dsic Harrow of Agricultural Machines

Product Description

Hydraulic Disc Harrow Tractor Trailed heavy duty dsic harrow of agricultural machines:
Product Description

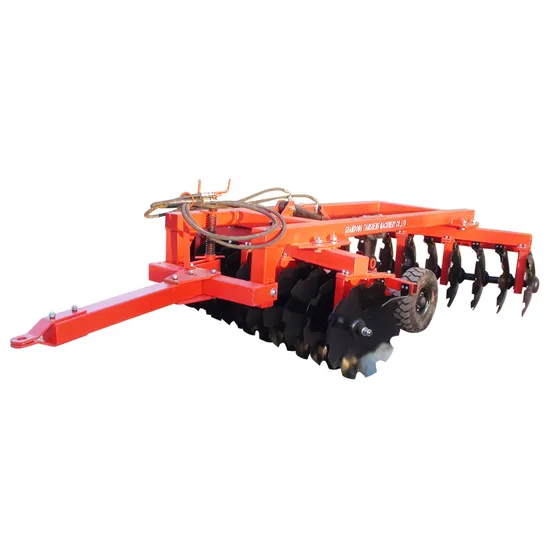

1BZ-2.2 20pcs hydraulic offset heavy duty disc harrow is based on the principle of traction farming. The set of concave discs is used as a working component. The insert blade edge plane is perpendicular to the ground and can be adjusted at an offset angle to the unit's advancement direction. The insertion piece rolls forward, the cutting edge of the insertion piece cuts into the soil, cuts the grass roots and crop residues, and arranges the soil ridge to move along the concave surface of the insertion piece by a certain height and then shift. This disc harrow is worked as operations of shallow ploughing and stubble after crop harvest, soil moisture retention in early spring and crushed soil after cultivation.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved .

Product Parameters

Model	1BZ-2.2
Diameter of disc (mm)	660 x 5
Weight (kg)	1250
Working width (m)	2.2
Working depth (cm)	180-200
Ground clearance (cm)	>160
Maximum working angle	23
Nos of disc blade	20
Matched power (hp)	80

Product Advantage
1.Disc Quantity: 20pcs.
2.High working efficiency, strong capability into the soil.
3. Highly adapt to the hard soil.
4. Easy maintenance, just need to inject bearing oil regularly
5. With hydraulic cylinder and Tyre, it can walk on the road.
6. The material of disc blades is spring steel 65Mn, HRC: 38-45.

Product Application
This hydraulic heavy duty disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened and impervious soil surface, crush and spread straw into the field shatter soil after tillage, and level the land and pressure soil moisture.

Installation Instructions
Cylinder
Frame Installation
Oil Tube Linkage to Tractor


Packaging & Shipping



FAQ
RFQ:
Q: What's your delivery time? A: Generally, 15-20 days after receipt of deposit, but the specific time depends on order quantity.
Q: What are your terms of package? A: Carton Box.
Q: What is your terms of payment? A: 30% T/T as deposit, 70% before delivery.
Q: WHat are your terms of Trade? A: EXW, FOB, CFR, CIF
Q: Can I get some samples? A: Yes, we are honored to offer you samples.
Q: Do you test all your goods before delivery? A: Yes, we will 100% test before delivery.

---
