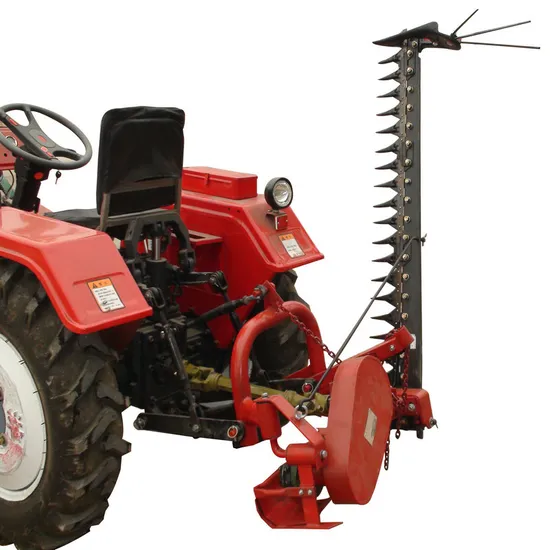

Agriculture Implement Side Sickle Bar Mower for Sale

US$299.00

1-9 Pieces

US$294.00

10-49 Pieces

US$289.00

50+ Pieces

Basic Info.

Model NO.

9g-1, 4

Application Field

Agriculture, Forestry

Farming Policy

Mountain Machinery

Power Source

Tractor

Operation

Arable Machinery, Movable Operation

Traction Type

Hanging

Drive Type

Chain Drive

Arbor Configuration

Horizontal Axis

Certification

ECE, EU, CE

Color

Red

Warranty

1year

Product Nmae

Sickle Bar Mower

Working Width

1400mm

Stubble Height

50-80mm

Pto Speed

540r/Min

Weight

200kg

Matched Power

12-20HP

Transport Package

Iron Frame Net Box

Specification

ECU, CE

Trademark

YCHS

Origin

China

Production Capacity

1000sets/Year

Product Description

Model 9G series of sickle bar mower takes advantage of the offset crank link mechanism to drive the cutter blade mow grass, and it is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues is lower after cutting.
Advantages: This mower is a 3-point pitch sickle bar mower. Double knife cutter bars have the advantage of a dynamic balance achieved by having two exactly similar knives reciprocate in opposite directions thereby generating less vibration than single knife cutter bars.

Model	unit	9G-1.4	9G-1.6	9G-1.8	9G-2.1
Working width	mm	1400	1600	1800	2100
Working depth	mm	50-80
PTO Rotation speed	r/min	540
PTO shaft spline		6 spline
Total weight	kg	120	124	128	135
Matched power	hp	12-20	15-20	20-30	20-30
Linkage		Three-point suspension I type
