product feature：

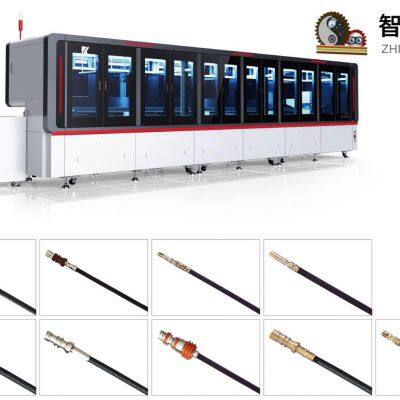

Equipment name Model：JL-2101 Fully automatic Fakra automotive wiring harness
Main functions: Cutting wire, stripping wire, threading copper pipe, riveting center pin, threading outer conductor, riveting outer conductor, product testing
Control mode Industrial computer control, Windows7 operating system
Pay-off system automatic wire feeding device, suitable for shaft loading, coil loading
Detection device
Pay-off testing, pressure testing, braid testing, core testing, center needle testing,
Outer conductor detection, depth detection, concentricity detection
Terminal pressure detection system crown
Suitable mold OTP, European pneumatic mold, etc
Terminal pressing capacity 30KN
Product Parameter：
Power supply 50/60HZ 220V single-phase
Processing length 100-15000MM (customizable)
Wire processing wire range 2.8-3.3MM
Production capacity 5--6S/PCS
Cutting accuracy ± (0.2%*L+1) mm
Air pressure 0.5-0.7Mpa (5-7KG/m³)
Dimensions 6000*1400*2100mm (excluding the size of the pay-off stand)
It weighs about 3500KG
Fully automated non-standard equipment can be customized according to customer samples.
>>
