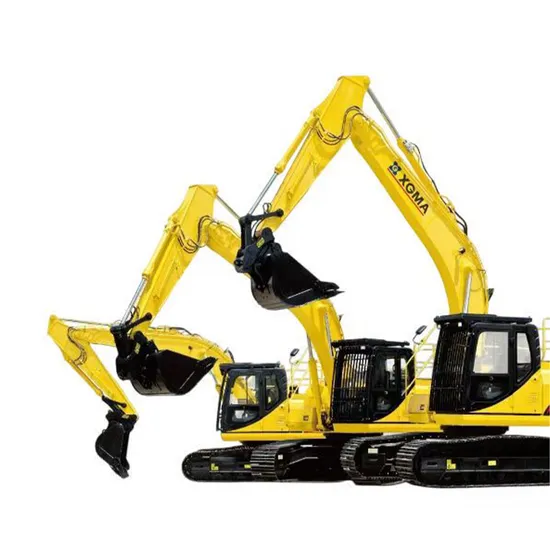

Factory Price Xgma Xg822FL Mini Excavator Diesel Small Digger Mining Machine

Product Description

Product Parameters

Operating Weight(kg)	21500
Bucket Range(m')	0.91/1.6
Breakout Force(kN)	180
Overall Length (mm)	9500
Overall Width with Shoes(600mm) (mm)	2990
Overall Height (mm)	3193
Tumbler center distance (mm)	3660
Undercarriage Length (mm)	4460
Gauge Width (mm)	2390
Upper Structure Width (mm)	2825
Rear-End Length/Swing Radius (mm)	2750/3540
Counterweight Clearance (mm)	1050
Bucket Digging Force (kN)	150
Arm Digging Force (kN)	107.5
Shoes	49
Track Width (mm)	600
Track Rollers	16
Carrier Rollers	4
Rated Net Power (kWirpm)	132/2000
Emission Standard	Tier 3
Displacement (L)	5.193
Bore(mm)*Stroke (mm)	105x127
Swing Speed (rpm)	11.3
Swing Torque (kNm)	68.8
Travel Speed (km/h)	5.3
Off-Level Capacity (°)	35
Ground Pressure (kPa)	44.9
Drawbar Pull (kN)	195
Operator Noise Level (dBa)	72
Exterior Noise Level (dBa)	103
Boom Length (mm)	5700
Arm Length (mm)	2910
Maximum Reach (mm)	9871
Maximum Digging Depth (mm)	6925
Maximum Vertical Wall(mm)	5237
Maximum Digging Height(mm)	9962
Maximum Dumping Height(mm)	6527
Fuel Tank Capacity(L)	380
Hydraulic Tank Capacity (L)	227
Coolant Tank Capacity (L)	22
Engine Oil Refill Capacity(L)	25
Hydraulic System (L)	316

Detailed Photos
Company Profile
Partners&Cases
Packaging & Shipping
To serve customers in different regions, we have a variety of sound and safe logistics solutions to ensure that every order can be safely and efficiently delivered to the destination.
After Sales Service
We have the professional after service team guarantee customers get the full service for spare parts, technology and maintenance, all the hardworking in order to customers get the continuous and better development.
FAQ
Q1: What are the delivery times for vehicle exportation?
A1: If the vehicle is in stock, we will deliver the vehicle within 5-10 days. If not, we will produce the vehicle, arrange the shipping, and complete delivery within 25-35 days. For other special vehicles, it might take more time to refurbish them according to your requirements.
Q2: What are the modes of transportation?
A2: Normally, Russia and Central Asia are suitable for truck and train transportation, and other regions such as the Middle East, Africa, and South America are suitable for sea transportation.
Q3: What are the delivery terms?
A3: EXW, FOB, CIP, CIF.
Q4: What are the payment terms?
A4: You firstly need to pay a 30% deposit after signing the trade contract with us, and then you need to pay the remaining 70% balance before the vehicle is shipped.
Q5: What are the payment terms and options?
A5: TT, L/C.
Q6: Do you provide after-sales support?
A6: Yes,we have a professional after-sales service team, who can provide technology support for you. Our team in China can purchase spare parts for you with competitive price and ship them to your location. (We ensure that every vehicle we send out is of excellent quality and will not require repairs under normal circumstances.)

---
