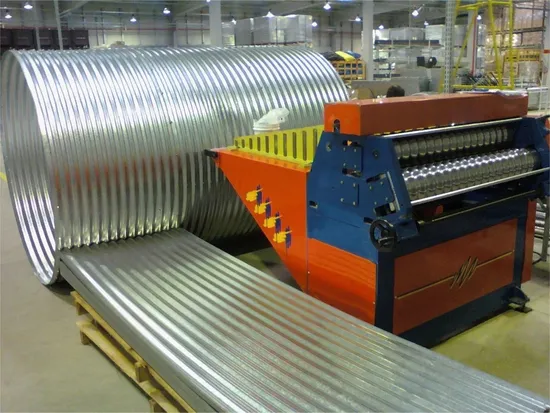

Barrel Type Metal Sheet Corrugation Machine Corrugated Barrel Iron Roof Sheet Making Machine

Product Description

Product Description
arch crimping curve roofing forming machine is widely used in curving color matel sheet.
1.Dimension of line :Main machine:2300*1650*1600mm
2.Weight:About 1.5T
3.Feeding roller material:45# high steel, chormed 0.05mm
4.Shafts:70mm
5.Main motor power:3kw
6.Voltage:380V/3phase/50HZ(or as your requirement)
7.Crimping mould:Cr12 high steel,quenched
8.Productivity:5-10m/min
9.Control system:Delta PLC box with inverter
press mould of arch metal curve roofing foming machine.
this new model of arch metal curve roofing forming machine adopts advanced technology.
compared with old machine,you can find in the following picture:
the fix type of biade is set against beam instead of set on the beam with screws.
Due to this new fix type, blade of arch metal cyrve roofing forming machine can prolong 3-5 years.

To improve stability and prolong life time, this machine adopts powerful 5.5 KW hydraulic station.
it adopts national standrad motor.
we use advanced control cabinet . It adopts touch screen+ button+ PLC control system.
The advantage of new model cabinet: more thick steel plate + more buttons to control machine

Product Parameters

Machine Dimension	1400mm×950mm×750mm
Power	1.5kw
Number of forming rows	5 rows
Spacing	210mm
Depth	23mm
Effective Width	840mm
Sheet thickness	Below 1.0mm
Roll material of bending machine	45# steel , hardness hr 55°- 57°
Weight	About 550Kg
Shaft diameter	¢70 solid shaft
Rectifying deviation	Rubber shaft control at feeding port to prevent deviation
Bending arch	Adjustable as require

Detailed Photos
Other product links

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.

---
