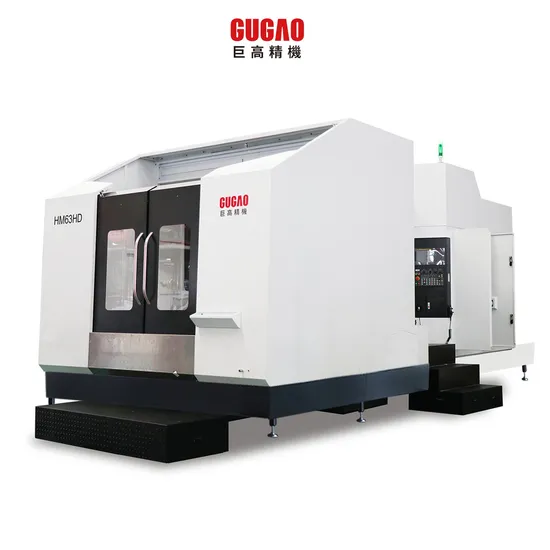

HM63HD Production Description
The HM63HD horizontal machining center is an inverted T-shaped double-exchange worktable structure, which is suitable for complex processing of box-type parts. The tool magazine can automatically exchange tools during the processing process. The workpiece can be clamped at one time for milling, drilling, reaming, boring, reaming, tapping, end face processing, boring step holes and other processes on four faces. The double-exchange worktable can improve the processing efficiency. This machine tool is suitable for the processing requirements of single pieces or small and medium batches of products.
Complete machine: The main structure of the machine tool is an inverted T-shaped, and the column moves on the base in the Z axis. The worktable moves on the base in the X axis, the spindle box moves on the column in the Y axis, and the rotary table moves on the X axis saddle in the B axis. Good rigidity. The machine tool has a beautiful shape, fully embodies the engineering concept of man-machine integration, and is a high-performance, high-efficiency, high-speed high-end CNC machine tool. Easy to use, operate and maintain.
Base: The advanced finite element analysis software is used to reasonably optimize the arrangement of the ribs to ensure their strength and rigidity, so that the performance indicators of each component are optimized and the rigidity is durable.
Column: The double-column closed frame structure is adopted, and the cavity is provided with high longitudinal and transverse annular ribs, so that the column has high torsional and bending rigidity.
Spindle box: The AC servo spindle motor can realize stepless speed regulation of the spindle.
Tool magazine: The tool magazine manipulator adopts a complete set of products from professional supporting manufacturers, with reliable quality and stable performance, which further improves the working reliability of the whole machine.
Drive: The advanced large inertia feed servo motor is used to realize the three-axis feed drive, and the high-rigidity ball screw pair is used to fundamentally solve the processing error caused by thermal deformation and transmission clearance of the workpiece during the processing process, so as to achieve the purpose of time saving and high precision.
Workbench: The indexing rotary table is driven by a large inertia feed servo motor, and the position accuracy is positioned by a high-precision rat gear disk, which is high-precision, accurate and reliable. CNC rotary table can be selected.
System configuration: Equipped with high-performance FANUC 0i-MF CNC system, it can ensure the CNC machining functions and auxiliary functions required by users.
The quality of all machine parts and components processed and assembled is in line with the product drawings and relevant technical requirements. Its safety standards comply with the relevant provisions of GB15760-2004 "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools", and its accuracy standards comply with the relevant provisions of GB/T17421-2000 "General Rules for Machine Tool Inspection" and JB/T8772-1998 "Precision Machining Center Inspection Conditions".
Main Paremeters

Name		Unit	Parameter	Note
Travel	Three axis travel (X/Y/Z)	mm	1050/850/900
	Distance from spindle end face to worktable Center(Z Direction)	mm	200~1100
	Distance from spindle center to worktable (Y direction)	mm	-27~823
Worktable	Worktable Size(L*W)	mm	630×630
	Maximum load-bearing capacity	kg	1200
	Minimum indexing angle	mm	1°×360
	Maximum rotation diameter of workpiece	mm	φ1150
	T-shaped slot (quantity × width× spacing)	mm	5×18×100
	Number of workbenches		2
	Exchange Method		Rotary exchange
	Exchange power source		Hydraulic drive
	Exchange time	S	60
Spindle	Max spindle speed	rpm	6000
	Spindle diameter Spindle bore taper		φ190/BT50
	Motor power	kW	15/18.5
	Spindle Torque	N.m	143/236
Feed	Three axis fast moving speed (X/Y/Z)	m/min	24/24/24
	(X/Y/Z) Three axis feed speed	m/min	10/10/10
Magazine	Magazine capacity		24T
	Max tool diameter/length/weight		φ110mm/350mm/15kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	φ110/φ200
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.012
	(X/Y/Z) repositioning accuracy	mm	0.008
	Rotary table positioning accuracy	''	±5
	Repeat positioning accuracy of rotary table	''	±1.5
Others	Linear guide rail specifications (X/Y/Z)	mm	55/55/65 Roller
	Ball screw specifications (X/Y/Z)	mm	Φ50
	Servo motor specifications (X/Y/Z)	N.m	36
	Air source/pressure		280L/min 6~8bar
	Total electrical capacity	KVA	45
	Machine size (X×Y×Z)	mm	7600×4300×3480
	Estimated weight	kg	18500

---
