Low Price Concrete Jbt30 Jbt40 Concrete Drum Mixer Concrete Cement Pump

Product Description

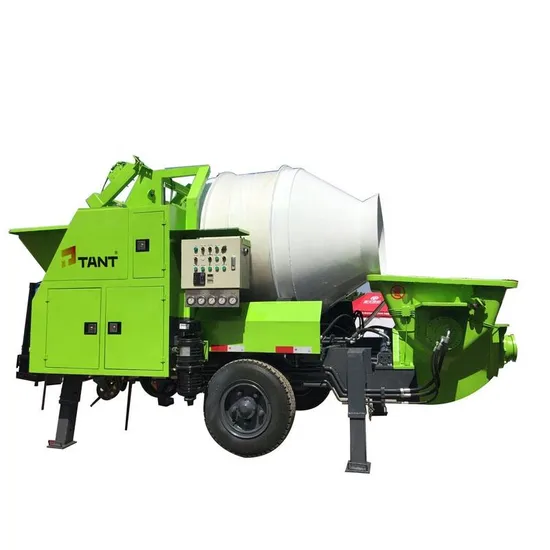

Trailer Mounted Concrete Pump with Mixer Professional manufacturer in Changsha, Hunan
20 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
Concrete pumping capacity 20, 30, 40, 50, 60, 80, 90
Electric Motor series & Diesel Engine series

Technical parameters

ITEM	PARAMETER	UNIT	ELECTRIC TYPE		DIESEL TYPE
			JBT30.07.30S	JBT40.08.37S	JBTS30.07.68D	JBTS40.08.72D
Hydraulic System	Max. Theor. Concrete Output	m3/h	30	40	30	40
	Concrete Cylinder Spec.(bore*stroke)	mm	200*1000	200*1000	200*1000	200*1000
	Diameter of Pump Exit	mm	180	180	180	180
	Theor. Max. Delivery Distance (Vertical/ Horizontal)	m	60/250	70/300	60/250	70/300
	Max. Aggregate Size	mm	Pebble≤20mm Gravel≤35mm	Pebble≤20mm Gravel≤35mm	Pebble≤20mm Gravel≤35mm	Pebble≤20mm Gravel≤35mm
Power System	Power	kw	30	37	68	72
	Voltage	V/Hz	380/50	380/50	380/50	380/50
Mixing System	Mixer Model		JZC350	JZC500	JZC450	JZC500
	Max. Mix Capacity	m3/h	12-15	15-18	12-15	15-18
Overall Performance	Overall Dimension (L*W*H)	mm	4450*2100*3000	4450*2100*3200	5100*2150*2500	5100*2150*2500
	Total Weight	kg	5000	5150	5200	5500

Package

Construction case
FAQ
1.Q:Are you factory or trading company?
A: We are factory in Changsha, Hunan.
2.Q: What is your main oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for structure parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: We provide video technical support, and we can send technicians to your country if necessary. We have local after service team in some areas.

---
