Product Details
Product Description
Product Description

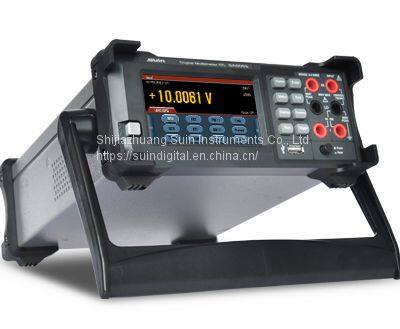

Digital Multimeter,true rms digital multimeter SA5053 brands Series is fast and high accuracy, multi-function and auto measurement instrument for Voltage, Current, Resistance, Frequency. The simple front panel and convenient operation support the demand in measurement.
Digital Multimeter Features:
*True 5 1/2 digits
*1 μV resolution
*Full measurement functions to meet user’s test need
*Double display voltage and frequency synchronously
*4.3 inch LCD capacitive touch screen to display bar chart, histogram and trend chart
| 5 1/2 digits
|
Basic Function
| Range
| Best Accuracy
± (% reading + digits)
|
DC Voltage
| 100mV/1V/10V/100V/1000V
| ± (0.01% + 4)
|
AC Voltage
| 100mV/1V/10V/100V/750V
| ± (0.1% + 100)
|
DC Current
| 100uA/1mA/10mA/100mA/1A/10A
| ± (0.05%+10)
|
AC Current
| 100uA/1mA/10mA/100mA/1A/10A
| ± (0.5%+100)
|
Resistance
| 100Ω/1KΩ/10KΩ/100KΩ/
| ± (0.03%+6)
|
1000KΩ/10MΩ/100MΩ
|
Capacitance
| 1nF/ 10nF/ 100nF/1uF/10uF/100uF
| ± (1%+5)
|
Frequency
| 20Hz-1MHz
| ± (0.005%+8)
|
Temperature
| -200 ~ 800℃
|
|
Features
|
Reading Rate
| 500 reading/s
|
Auto Range
| ●
|
Diode
| ●
|
Continuity
| ●
|
Null
| ●
|
Trigger
| ●
|
Save/Read
| ●
|
Math
| MAX/MIN,Null,dB, dBm, MX+B,%,Limit,Statistic
|
General Characteristics
|
Safety
| IEC61010-1: 2001, CAT Ⅰ 1000V/CAT Ⅱ 600V, Class of pollution: 2
|
Interface
| USB Host, USB Device,RS-232,LAN, GBIP (optional)
|
Power
| 110 V/220 V (1±10%), 50 Hz/60 Hz, 15 VA
|
Dimension & Weight
| 260х106х375 mm, 2.6 kg
|
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
Contact us for more details.
>>
