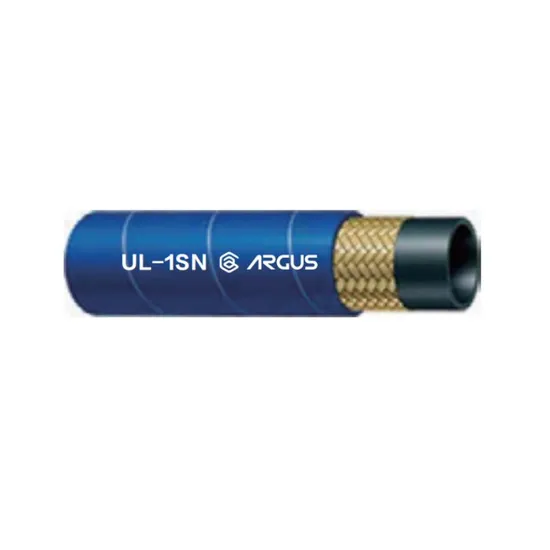

UL-1sn High Temperature Hose Series En853 1sn SAE 100r 1at Hydraulic Hose

Product Description

Product DescriptionUL-1SN is the standard for high-pressure hydraulic hoses and is commonly used in a variety of applications. The hose is known for its single-ply steel wire braid and its ability to operate in high-temperature conditions from -40°C to +135°C.
UL-1SN hose is constructed of high-quality materials that provide excellent durability and resistance to abrasion, high temperatures, and other types of wear and tear.UL-1SN hose has a single layer of steel wire braid that provides additional strength and flexibility. This braid also helps prevent kinking, twisting, and other forms of damage. The -40°C to +135°C high-temperature range makes these hoses ideal for use in extreme environments. They can withstand high temperatures and maintain their flexibility and strength, making them suitable for applications where other hoses would fail.UL-1SN hoses are used in low and medium-pressure hydraulic systems, and air compressor hoses.

Type	Hose Size			I.D		0.D		Max WP		Min B.P		Min B.R	WT
	Dash	mm	inch	Min	Max	Min	Max	MPa	Psi	MPa	Psi	mm	kg/m
UL-1SN-03	-3	5	3/16	5.0	5.4	11.1	11.9	25.0	3625	100.0	14500	90	0.20
UL-1SN-04	-4	6.3	1/4	6.5	6.9	12.7	13.7	22.5	3260	90.0	13050	100	0.25
UL-1SN-05	-5	8	5/16	8.0	8.5	14.3	15.3	21.5	3120	85.0	12325	115	0.26
UL-1SN-06	-6	10	3/8	9.5	10.0	16.6	17.6	18.0	2610	72.0	10440	130	0.36
UL-1SN-08	-8	12.5	1/2	12.7	13.3	19.7	20.7	16.0	2320	64.0	9280	180	0.43
UL-1SN-10	-10	16	5/8	15.9	16.7	22.7	23.9	13.0	1885	52.0	7540	200	0.52
UL-1SN-12	-12	19	3/4	18.9	19.7	26.8	28.0	10.5	1520	42.0	6090	240	0.65
UL-1SN-14	-14	22	7/8	22.0	22.8	29.6	30.8	10.0	1450	40.0	5800	280	0.71
UL-1SN-16	-16	25	1	25.4	26.2	34.6	35.8	8.8	1280	35.0	5075	300	0.98
UL-1SN-20	-20	31.5	1-1/4	32.0	32.8	42.0	43.2	6.3	910	25.0	3625	420	1.20
UL-1SN-24	-24	38	1-1/2	38.1	39.0	48.9	50.1	5.0	725	20.0	2900	500	1.70
UL-1SN-32	-32	51	2	50.8	51.8	62.9	64.5	4.0	580	16.0	2320	630	2.00
UL-1SN-40	-40	63	2-1/2	64.0	65.0	76.8	78.4	2.5	362	10.0	1450	760	2.50
UL-1SN-48	-48	76	3	76.0	77.0	90.8	92.4	2.0	290	8.0	1160	900	3.33
UL-1SN-56	-56	89	3-1/2	89.0	90.0	103.2	105.2	2.0	290	8.0	1160	1100	4.00
UL-1SN-64	-64	102	4	102.0	103.0	117.0	119.4	1.8	260	7.2	1045	1300	4.60
