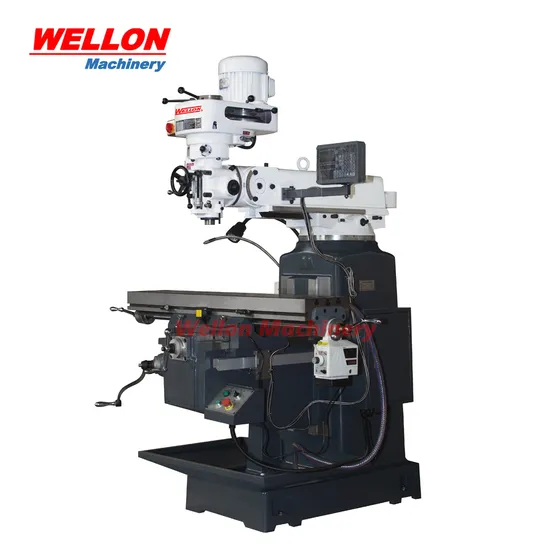

Heavy Duty Turret Milling Machine (X6333 Vertical Turret Milling Machine price)

Product Description

Products Description:
Performence Features: 1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
2.High speed milling head from Taiwan
3.Harden the slide way and table surface
4.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving.
Technical parameter:

MODEL	X6333
Table size	330*1370
Long travel(mm)	840 1000
Cross travel(mm)	360
Vertical travel(mm)	400
T-slot No.and size(mm)	3*16
Ram travel(mm)	500
Distance from spindle nose to table surface(mm)	0-450
Spindle hole taper	ISO40
Spindle travel(mm)	127
Spindle speed(r.p.m)	shift grade 16:50HZ 66-4540,60HZ 80-5440
	optional:variable:60-3600
Auto.quill feed	Three steps:0.04/0.08/0.15mm/r
Spindle motor	3.75kw/5hp
Head swivel	90°
Head tilting	45°
Dimensionof package	1800*2016*2180
G.W/set	2200

Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Guide way protection
Optional parts:
3-axis DRO
X-axis auto power feed
Y-axis auto power feed
Z-axis auto power feed
Air draw bar
Variable speed
Machine vice 160mm
Separately operate panel box
