3 Axis CNC Milling-Machine CNC Vertical Machine Center Machining Center Price

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

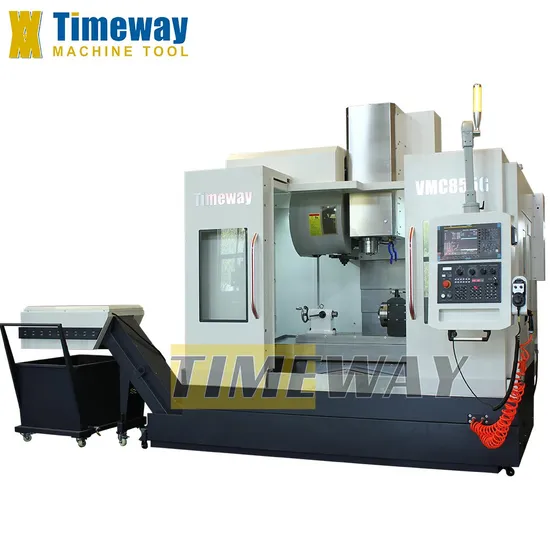

vertical machining center

SPECIFICATION	UNIT	VMC400G	VMC650G	VMC850G	VMC855G	VMC1160G
Worktable size (LxW)	mm	300x600	1000x420	1000x500	1000x550	1200x600
T-slot (No./width/pitch)	mm	3-14-100	5-18-80	5-18-100	5-18-100	5-18-100
Loading capacity	kg	150	400	500	500	800
Longitudinal travel (X)	mm	400	700	800	800	1100
Cross travel (Y)	mm	230	450	500	550	600
Vertical travel (Z)	mm	450	450	500	550	600
Distance from spindle nose to table	mm	100-580	130-630	110-610	110-660	120-720
Distance from spindle center to column	mm	320	495	524	600	672
Spindle taper	-	BT30(BT40)	BT-40	BT-40	BT-40	BT-40
Spindle speed	rpm	6000	8000	8000	8000	8000
X/Y/Z-axis rapid feed speed	m/min	12/12/10	48/48/48	48/48/48	48/48/48	36/36/36
X/Y/Z-axis servo motor (FANUC)	-	0.75/0.75/1kw	β12/β12/β22	β12/β12/β22	β12/β12/β22	β22/β22/β22
X/Y/Z-axis positioning accuracy	mm	0.02	±0.003/300	±0.003/300	±0.003/300	±0.003/300
X/Y/Z-axis repositioning accuracy	mm	0.01	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Main motor power	kw	2.2(3.75)	7.5/11	7.5/11	7.5/11	11/15
Air pressure source	kg/cm2	4-8	6-8	6-8	6-8	6-8
Power capacity	Kva	10	18	20	20	25
Tool magazine capacity	T	8/12(Crousel)	12(Crousel)	24(Disc)	24(Disc)	24(Disc)
Guideway type	-	Linear	Linear	Linear	Linear	Linear
Machine weight	kg	2300	3500	4200	5200	6200
Machine dimensions (LxWxH)	mm	2000x1900x2000	2400x1900x2400	2800x2250x2600	2800x2350x2800	3200x2560x2960

MAIN CONFIGURATION & ACCESSORIES: 1. Resin sand casting; 2. X, Y, Z rails adopts imported linear guideway; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Import coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES: 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement system; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer

Detailed Photos

CNC controller KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

High Rigidity Spindle Standard with belt driven spindle, optional for direct driven spindle

Taiwan ATC carousel type and disc type are available as option

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
