Kmu-500d Z-Axis Pneumatic Balance System 5 Axis Machining Center CNC Milling Machine

Product Description

KMU-500D Z-axis pneumatic balance system 5 Axis Machining Center CNC Milling Machine Product Description
Standard configuration
· Syntec system
· 20000rpm elctric spindle
·Spindle air blowing
· Chip flushing device
·3 axis retractable cover
·Fully enclosed shield
· Automatic lubrication system
·working lamp
·Operation Status Indicator
·24 arm type tool magazine
·Z-axis pneumatic balance system (KMU-500)
·cooling system
·Air gun, water gun
· Electronic hand wheel
· Electric box heat exchanger
·Rigid tapping
·Spindle oil temperature cooler
·transformer
·Chain chip conveyor (KMU-170 not equipped)
·Toolbox and tools
·Level adjustment screw and spacer
·Operation manual and program manual
Optional configuration:
·Mitsubishi, Siemens, FANUC system
·Electric spindle
·30, 40 tool magazines
·Chain chip conveyor
·X/Y/Z axis optical ruler
·A/C axis optical ruler
·Spindle center outlet
· Electric box air conditioner
· Hollow screw
· Automatic knife length measuring device
· Automatic workpiece measuring device
·Oil /Water separator
· Minimal quantity lubrication cooling device
·Oil mist collection device
·Spindle center outlet

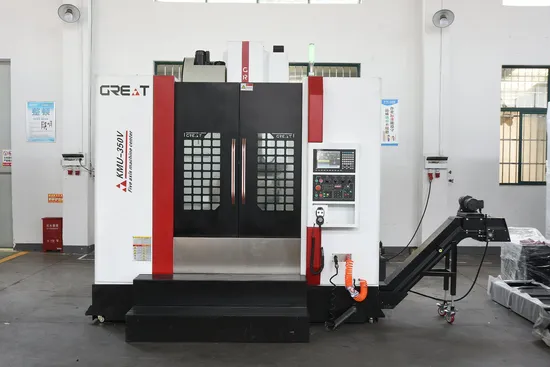

Detailed Photos

Product Parameters

Items		KMU-260D	KMU-400D	KMU-500D	KMU-350/400V
Travel	X axis travel(mm)	600	500	500	900
	Y-axis travel(mm)	450	800	450	700
	Z-axis travel(mm)	330	350	450	650
	A Axis	+120°	-90°/120°	+120°	+30°/-120°
	C axis	360°	360°	360°	360°
	Max.rotation diameter	4000	500	600	500
	Spindle nose to table(mm)	100-430	150-500	150-600	180-830
Table	Table size(mm)	φ260	φ400	φ500	φ350/φ400
	Horizontal load of table(kg)	50	250	350	150
	Tilting load of table(kg)	35	200	300	200
	T-slot size(mm)	12x21	7-14x63	7-14x63	6-14x63
Spindle	Spindle driving	Direct	Electrical	Electrical	Belt/direct
	Spindle speed(rpm/min)	20000	20000	18000	8000/12000
	Spindle taper	BT30	HSK/A63	HSK/A63	BT40
	Spindle power(KW)	5.5	20	20	11/15
A/C Axis	A/C axis form(X/Y/Z)	DD direct	DD direct	DD direct	worm gear
	A-axis max.speed(rpm/min)	189	100	30	16
	C-axis max. speed(rpm/min)	386	200	120	25
	A/B axis positioning accuracy/repeatability(sec)	±8/±5	±6/±3	±6/±3	±25/±5
	C-axis positioning accuracy/repeatability(sec)	±8/±5	±6/±3	±6/±3	±8/±4
	A/B axis rated torque(N·m)	259/460	780	1290	780
	C-axis rated torque(N·m)	122/223
Other	Air pressure requirement	6	6	6	6
	Machine weight	4000	7000	7500	7200

Company Profile
Ningbo GREAT Machine Tool Co., Ltd. is a modern scientific and technological enterprise specializing in the production of CNC Machinewith brand name Great. Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation.Our main products including: Vertical machining centers, high-speed drilling and tapping machines, CNC engraving and milling machines, gantry machining centers, horizontal machining centers, etc. Complete specifications, diversified configurations can be selected according to your different needs. We offer customized products according to your needs, cost-efficient products processing solution, importing automation, replacing labour by machines, etc.Our products are suitable for producing auto accessories, textile Accessories, digital products, medical instruments, mold manufacturing, aluminum casting and so on.We import inspection equipment from Italy and Britain and conduct complete inspection for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. To ensure the high precise and stable quality of our products. In addition, we provide best after-sales service. Our professional teams maintain close contact with customers and provide technical support at any time if necessary.We adhere to the Diamond quality concep tand keep working on it to provide best products for each customer.

---
