Basic Info.
Designed Speed
700PCS/Min
Production Speed
500PCS/Min
Computer Control Panel
Computer Control Panel
Product Specification
Medium
Automatic Grade
Full Automatic
Product Size
350*450mm,450*600mm,600*600mm,900*600mm
Installation
350kw, Excluding Air Compressor, Glue Machine
Air Compressor
0.6-0.8MPa
Raw Materials
Fluff Pulp, Nonwoven, Sap, etc.
Machine Size
35m*10m*5.5m
Machine Color
Rich White, Can Be Designed as Customer′s Demand
Machine Direction
Face Machine From Left to Right(Fyi)
Transport Package
Export Standard
Product Description
MACHINE DETAILS
| Design Speed | 700pcs/min |
| Stable Work Speed | 500pcs/min |
| Power Supply | 380V±5%,50HZ(3 phase,4lines,ground-in) |
| Installation | 350KW(excluding air compressor,glue machine) |
| Power Used | 400KW |
| Air Compressor | 0.6-0.8Mpa |
| Product weight Tolerance | ±5 |
| Qualified Rate | ≥97%(excluding glue,splice,raw jointer defectives) |
| Efficiency | ≥85% |
| Machine Size(L*W*H) | 35m*10m*5.5m |
| Working Size(L*W*H) | 38m*12m*7m |
| Machine Weight | 70Tons |
| Machine Color | Rich White(can be designed as customer's demand) |
| Machine Direction | Face the machine from left to right (can be designed as customer's demand) |

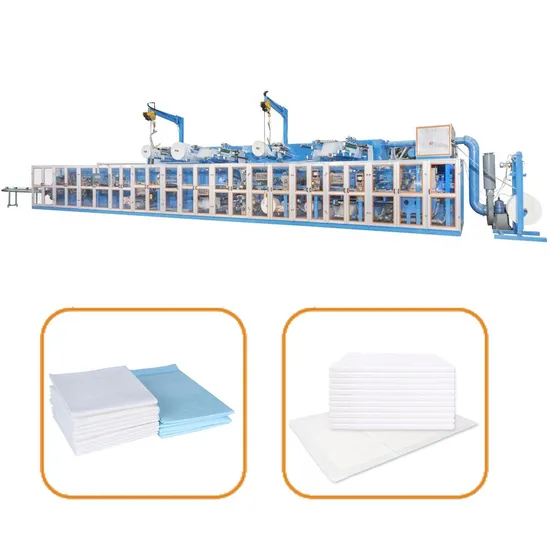

The high speed full automatic disposable underpad making machine incorporates cutting-edge technology and automation to produce high-quality underpads with precision and accuracy. Equipped with a program system, tension system, driven system, safety system, auto packing system, and web guiding system that are all servo-driven, the machine ensures each step of the production process is carried out smoothly and consistently. This results in uniform underpads that meet strict quality standards. The high speed full servo disposable underpad making machine offers versatility in terms of customization options. It adopts servo-driven, digital size changes to accommodate different sizes, shapes, and absorbency levels according to customer requirements. This machine comes in various sizes including 350 mm*450 mm, 450 mm*600 mm, 600 mm*600 mm,and 900mm*600mm. Additionally, it can be designed according to the specific needs of customers. This flexibility allows manufacturers to efficiently cater to a wide range of market demands.
Welcome to choose us and please feel free to contact us at your earliest convenience.
MACHINE FEATURES
MACHINE PRODUCTION WORKSHOP
FINISHED PRODUCTS
PET PAD//UNDERPAD
OUR ADVANTAGES
>>
