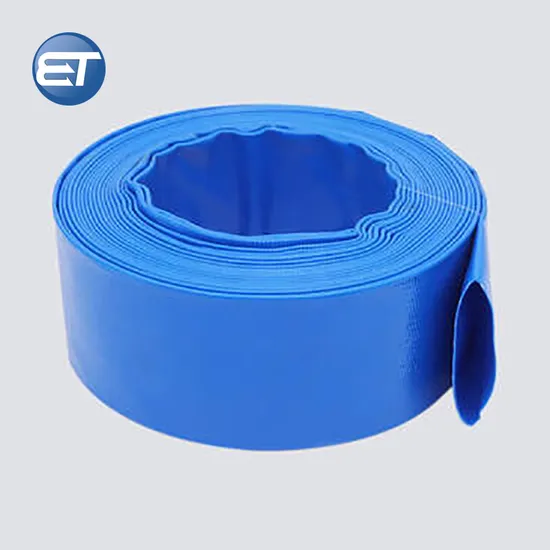

PVC Layflat Discharge Hose Pipe 1 2 3 4 5 6 8 10 12 16 Inch for Water Drain Pump Agriculture Irrigation Pool Backwash

Product Description

PVC LAYFLAT DISCHARGE HOSE PIPE 1 2 3 4 5 6 8 10 12 16 INCH FOR WATER DRAIN PUMP AGRICULTURE IRRIGATION POOL BACKWASH PLASTIC LAY FLAT HOSE
Standard Duty:

ID		OD	WP		BP		W/A	COIL
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	20	22.4	5	60	15	240	100	100
1	25	24.7	5	60	15	240	140	100
1-1/4	32	34.4	5	60	15	240	160	100
1-1/2	38	40.2	5	60	15	240	180	100
2	51	53	4	60	12	180	220	100
2-1/2	64	66.5	4	60	12	180	300	100
3	76	78.2	4	60	12	180	360	100
4	105	104.5	4	60	12	180	550	100
5	127	129.7	4	60	12	180	750	100
6	153	155.7	3	45	9	135	900	100
8	203	207	3	45	9	135	1600	100
10	255	259.8	3	45	9	135	2600	100
12	305	309.7	2	30	6	90	3000	100
14	358	364	2	30	6	90	5000	50
16	408	414	2	30	6	90	6000	50

Medium Duty:

ID		OD	WP		BP		W/A	COIL
inch	mm	mm	var	psi	bar	psi	g/m	m
3/4	20	22.7	7	105	21	315	110	100
1	25	27.6	7	105	21	315	160	100
1-1/4	32	24.4	7	105	21	315	190	100
1-1/2	38	40	7	105	21	315	220	100
2	51	5307	6	90	18	270	300	100
2-1/2	64	6701	6	90	18	270	430	100
3	76	79	6	90	18	270	500	100
4	105	105.8	6	90	18	270	800	100
5	127	131	6	90	18	270	1080	100
6	153	157.8	6	90	18	270	1600	100
8	203	208.2	5	75	15	225	2200	100

Heavy Duty:

ID		OD	WP		BP		W/A	COIL
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	20	23.1	10	150	30	450	140	100
1	25	28.6	10	150	30	450	200	100
1-1/4	32	35	10	150	30	450	210	100
1-1/2	38	41.4	10	150	30	450	290	100
2	51	54.6	10	150	30	450	420	100
2-1/2	64	57.8	10	150	30	450	700	100
3	75	81.1	10	150	30	450	850	100
4	105	107.4	10	150	30	450	1200	100
6	163	159	8	120	24	360	2000	100
8	203	209.4	6	90	18	270	2800	100

1. What is your standard length per roll?
The standard length is 100m, we can also make any length as customers' requirement, like 10m/15m/20m/30m/50m.
2. What is the minimum and maximum size you can produce?
The minimum size is 3/4"-19mm, the maximum size is 16"-406mm.
3. What is the working pressure of your layflat hose?
The maximum working pressure of our layflat hose is 10bar.
4. Is your layflat hose UV resistant?
Yes, our layflat hose is UV resistant.
5. What is the service life of your layflat hose?
The service life is 2-3 years, if it is well preserved.
6. What is the MOQ of your layflat hose?
We can accept orders of any quantity.
7. Can you make customer logo on the hose and packaging?
Yes, we can make your logo on hose body and packaging and it is free.
8. What quality guarantee you can supply?
We tested the quality each shift, once quality problem, we will replace our hose freely.

---
