Basic Info.
Structure
Bench Drilling Machine
Precision
Normal Precision
Max.Drilling Machine
32mm
Box Size
1150X643X310,650X518X313
Specification
1150X643X310, 650X518X313
Production Capacity
7000/Year
Product Description
Product Description

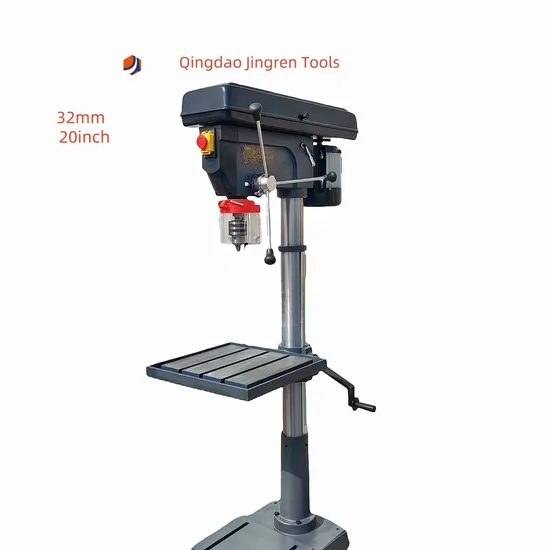

20 inch 32mm bench drill, machine height 1700mm, spindle stroke 120mm, sink table, easy to operate, laser positioning and lighting can be optional.
Detailed Photos
Product Parameters
| MODEL | DP202001 |
| MOTOR | 1500w/1300W |
| Swing | 515mm |
| Max.Drilling capacity | 32mm |
| Taper | MT3 |
| Spindle travel | 120mm |
| Spindle Speed | 12speed |
| Speed range 50HZ | 200-1990rpm |
| Speed range 60HZ | 260-2400rpm |
| Table Size | 480x440mm |
| Base size | 595x400mm |
| Max.distance from spindle end to surface of table(mm) | 705mm |
| Max.distance from spindle end to surface of base(mm) | 1190mm |
| Column Diameter | ¢92mm |
| Table Tilting Range | 0-45° |
| Overall Height | 1700mm |
| NW./GW. | 129/135 |
| Carton size | 1150x643x310/650x518x313 |
| Q'ty/20 container | 80 |
https://jingrendrillpress.en.made-in-china.com/product-list-1.html Certifications
CE
FAQ
Q: Are you a manufacturer or a trading company?
A:We have been in this industry for more than ten years, with our own manufacturing plant, and our own research and development trade production team.
Q: How is your quality control?
A: We have QA & QC department to make sure qualified products us.
income raw material inspection and first unit sample confirmed by QA before assembling; processing, duration & performance testing carried out by QC before packing by 100%;
Q: What's your payment term?
A:The payment term is30% down payment and 70% balance before shipment.
Q:Can you accept smaller order?
A:Yes, our MOQ is 50pcs without customized color and package. Our Advantages
Our company has 20 years of manufacturing experience in this industry, the products and the United States, Brazil, Argentina, Mexico, Australia, New Zealand, the Philippines, the United Kingdom, Bulgaria, Italy and other customers have a wide range of cooperation, high quality and low price is our good service to customers one of the best withdrawal is also an important reason for so many customers recognition. To choose us is to choose a good product, a good price and a good service.
>>
