Factory Direct Sale Universal Radial Drilling Machine (Z3040X10)

Product Description

Factory Direct Sale Universal Radial Drilling Machine (Z3040X10)

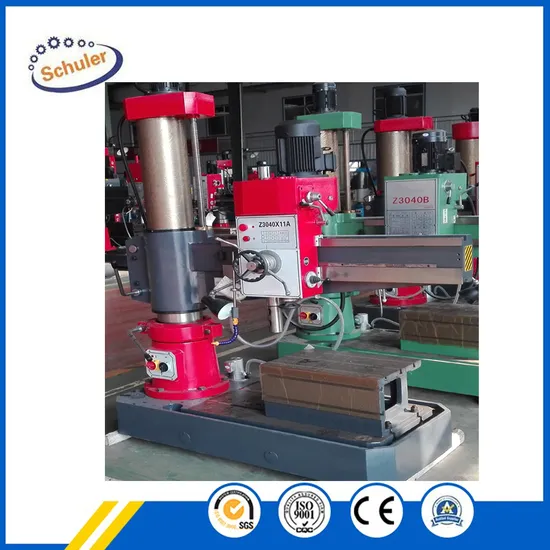

Product picture:
Features:
The radial drilling machine model Z3040,Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Radial Drilling Machine Technical Parameters:

specification	Z3040×11/II	Z3040×11A	Z3040×14	Z3040×14II
Max. drilling dia mm	Cast iron 40 Steels 32	Cast iron 40 Steels 32	Cast iron 40 Steels 32	Cast iron 40 Steels 32
Distance between spindle axis and column mm	260-1050	260-1050	260-1150	260-1050
Distance between spindle nose and working surface of base plate mm	360-1/1100	360-1/1100	360-1400	360-1/1400
spindle travel mm	270	200	200	200
spindle taper(morse)	4	4	4	4
range of spindle speeds r.p.m	40-1896	75, 130,240,380,660,1200	75, 130,240,380,660,1200	40-1250
number of spindle speeds	12	6	6	6
r.p.m rang of spindle feeds	0.13-0.54	0.10-0.25	0.10-0.25	0.10-0.25
steps of spindle feeds	4	3	3	3
Radial rotation Angle (°)	360	360	360	360
main motor kw	2.2	2.2	2.2	2.2
Lifting motor power kw	0.75	0.75	1.5	1.5
weight kg	1600	1600	2200	1200
overall dimensions mm	1550×705×2200	1500×705×2200	1800×810×2300	1800*810*2200

Radial Drilling Machine Details:
Radial Drilling Machine In the Workshop:
Radial Drilling Machine Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
