Stordworks Blood and Gut Disc Dryer for Slaughterhouse

Product Description

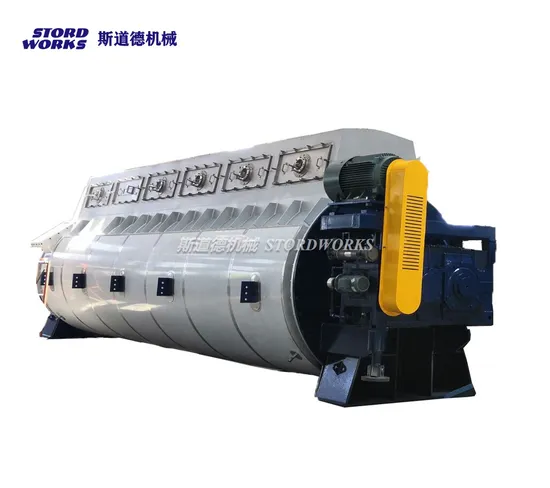

Disc dryer machine steam heating continuous automatic drying equipment with indirect condenser
Disc sludge dryer can be heated both by the rotor and the stator, which greatly increases the drying area, improves the thermal efficiency and ensures the material is fully dried. The dryer is composed of a horizontal stator and a rotor. The heating tubes are installed on the rotor and with the paddles on the sides, which' angels can be adjusted. It's for heating the materials when working and also pushing the materials to the discharge end. The steam distribution device can make the steam evenly distributed to each heating tube. The steam flows inside the heating tube, makes the heating tube to keep constant temperature. Then the condensate will be discharged through the special device at the end of the shaft.
ADVANTAGES
1.High evaporation capacity;
2.It features inspection windows along the body;
3.Material homogeneity;
4.comply with the requirements of the ISO and CE standard.
5.fully automated system;
1.Carefully check the quantity and quality of equipment before packing. 2.Good packed by plastic wrap.

3.Iron Frame, Suitable for land transport and sea freight

4.Fittings and spare parts are packed in wooden pallet .
5.Add labels and shipping mark.
JIANGSU STORD WORKS LTD. Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China,
It is home to more than 200 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices,with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm.
StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification.
Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service concept of "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, Jiagnsu Stord Works Ltd.
sincerely looks forward to cooperating with you!

---
