US$2,900.00-3,540.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
CE, ISO 9001
T Slot No. /Width/Distance
3/16/50 mm
Max. Load of Table
Max. Load of Table
Table Xyz Axis Travel
700X340X500 mm
Transport Package
Wood Case
Production Capacity
200PCS/Month
Product Description

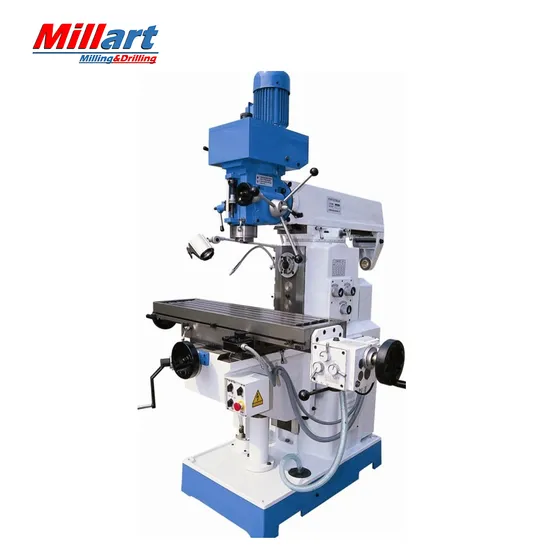

Universal Drilling and Milling Machine ZX6350Z Knee-Type Mill
1.Rectangular table guideways with high stability.
2.Hardened and ground table surface.
3.Headstock swivels ±45°,vertical milling spindle auto-feeding.
4.Automatic feeds on X axis.
5.Y axis power feed and Z axis motorized lifting are optional
Technical parameter:
| Specifications | Unit | ZX6350Z |
| Table size | mm | 1200X280 mm |
| T slot no. /width/distance | mm | 3/16/50 mm |
| Max. load of Table | kg | 250 kg |
| Table XYZ axis Travel | mm | 700x340x500 mm |
| Spindle taper | | ISO40 |
| spindle speed /step -- Vertical | | 90-2000/8steps |
| --Horizontal | | 40-1300/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 100 |
| Max. vertical milling Dia. | mm | 25 |
| Max.Tapping Dia. | mm | M16 |
| Quill travel | mm | 120 |
| swivel angle of headstock | | ±45 |
| vertical spindle axis to column surface | mm | 230-680 |
| vertical spindle nose to table surface | mm | 30-530 |
| horizontal spindle axis to table surface | mm | 0-500 |
| horizontal spindle axis to arm bottom | mm | 200 |
| ram travel | mm | 500 |
| Longitudinal feed | mm/min | 24-720/8steps |
| Longitudinal rapid speed | mm/min | 720(X) |
| Main motor | kw | 2.2(V), 2.2(H) |
| Feed motor | kw | 0.55(X) |
| coolant motor | kw | 0.04 |
| overall dimension (CM) | cm | 152X1285X215 |
| N/W,G/W | kg | 1350/1500 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X axis auto power feed |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories:
| Y axis power feed motor |
| Z axis motorized lifting |
| 3 axis DRO |
| Air draw bar |
| Separately control panel box |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Worktable swivel ±45 degree |
| Rotary table HV10 |
| Dividing head BS-0 |
| Machine vice 160mm |
>>
