Product Details
Product Description
Product Description
APPLICATIONS

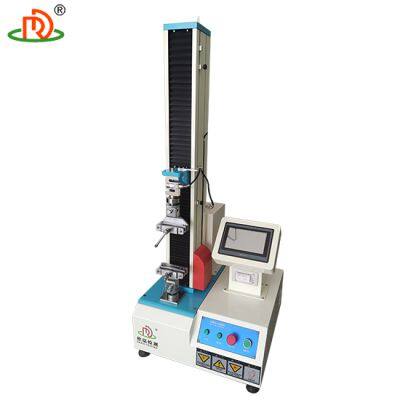

Computerized Universal Test Machine, is professionally specialized in plastic film, composite, soft packaging materials, plastic hose, adhesive, adhesive tape, medical adhesive, medical device, release paper, protective film, composite cover, metal foil, diaphragm, backboard material, non-woven fabric, rubber, paper and other products of tensile, peeling, deformation, tear, bonding, puncture force, opening force, low speed unwinding force, pull force and other performance tests.
FEATURES
Ten Processes Meet Variegated Requirements:
The machine integrates ten professional and independent test procedures, such as tension, peeling, tearing, heat sealing, constant extension and tension, pressure, puncture retention force, etc., providing users with a variety of test items.
It supports the downward pressure test such as rubber plug puncture and ampule breaking force, and the test speed can be set freely.
Intelligent design such as limit protection, overload protection and automatic return to ensure operational safety.
Excellent testing mechanism accuracy upgrade:
Equipped with force value testing system of global famous brands to provide force value accuracy better than level 0.5, better repeatability and more flexible testing.
Equipped with servo operation system of global famous brand and precision ball screw multiple axis positioning technology to provide displacement accuracy better than 0.5 level, stepless speed regulation, convenient use and more stable operation.
High End Embedded Computer System PlatformSafety And Easy:
Integrated system design, integration of instrument and software.
Support group test data comparison and analysis, with multiple unit conversion function.
The system is embedded with USB interface and network interface to facilitate the external access and data transmission of the system.
TEST STANDARDS
GB/T1040,GB/T528,GB/T529,GB/T8808,GB/T13022,GB/T2790,
GB/T3923.1,GB/T20310,GB/T3690,GB/T4944,GB/T3686,
GB/T10654,HG/T2580,DL/T1476,JC/T777,HG/T2538,BS EN ISO 1421,GOST 18299,DIN 53357,BS 903,BS 5131,ASTM D3574,ASTM D6644…
SPECIFICATION
Item
| Parameters
|
Load capacity
| 5-200kg
|
Load cell brand
| Germany brand TECSIS load cell
|
Motor
| 400w Panasonic servo motor
|
Driver
| 400w Panasonic servo driver
|
Screw
| High precision ball screw
|
Control way
| Panel control (touch screen), connected to computer
|
Adjustable speed
| 0.1-500mm/min
|
Vertical test space
| 900mm (including clamp)
|
Load resolution
| 1/250,000
|
Load accuracy
| ≤0.5%
|
Unit switching
| gf/kgf/N//kN/LBf/T
|
Dimension
| （L*W*H）520*515*1250mm
|
Suttle weight
| About 70KG
|
Power
| AC 220V
|
>>
