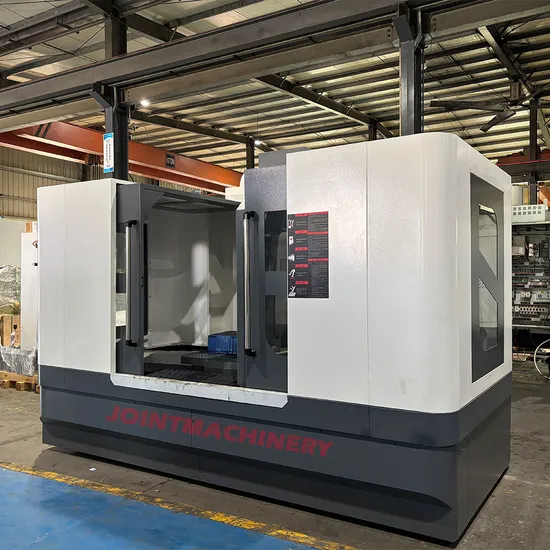

CNC Deep Hole Drilling Machine Tools with Max Depth of 1600mm Capability

Product Description

Drilling has long been esteemed as the bedrock of machining operations, a pivotal process with diverse applications. Traditional drilling tools like bench drills, milling machines, and radial drills have typically depended on manual labor, restricting workers to repetitive tasks with limited quality assurance. These methods also introduced concerns about safety, efficiency, and processing limitations, creating obstacles for manufacturers and operators. However, with the revolutionary leap of the CNC era, the CNC deep hole drill has radically shifted this paradigm, freeing laborers from manual constraints and tackling deep drilling challenges with finesse. This forward-thinking technology excels in executing single-pass drilling while matching the quality of traditional machines, also performing reaming and expanding tasks. It further automates chip removal, CNC positioning, and precision processing, redefining efficiency and elevating output quality to new heights.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Joint Machinery is proud to present its precision-engineered CNC deep hole drilling machine-the epitome of meticulous design tailored to meet a wide range of workpieces requiring intense deep hole processing:
√ Die & Mould Industry: Ideally suited for intricate tasks such as crafting water transport holes, center holes, hot runners, guide roller holes, and more with precision.
√ Auto Industry: Perfectly designed for complex deep hole processing in cylinder heads, crankshafts, hydraulic tubing, plunger bushings, and more, meeting the industry's rigorous demands.
√ Oil Pump & Lubricating Nipple Industry: Expertly crafted for precise deep hole drilling in oil-injection gases, nozzle valves, plunger bushings, and various essential spare parts, ensuring reliability and longevity.
√ Textile Machinery Industry: Achieves precision mesopore drilling with ease across a range of spindles, enhancing efficiency and precision.
√ Medical Equipment Industry: Specializes in exacting axial processing on materials like titanium alloys and stainless steel, adhering to the stringent standards required by the medical sector.
√ Mining & Oil Machinery: Provides robust solutions for deep hole processing on piston rods and cylinder walls, catering to the demanding requirements of heavy-duty applications.
√ Electrical Power & Steam Turbine Industry: Excels in deep hole processing of rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates, ensuring performance and precision.
CNC Deep Hole Drilling Machine Tools with Max Depth of 1600mm Capability

Model	Unit	DH-1600
Inner diameter of drilling	mm	2.5-35
Max depth of drilling	mm	1600
Table size	mm	1800*1150
X axis travel	mm	1600
Y axis travel	mm	1100
Z axis travel	mm	1600
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	7.5/11
Three axis motor	kw	4.4/4.4/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	13000
Weight	kg	14000
Dimension	mm	5500*4300*2800

Shenzhen Joint Machinery Co., Ltd. is a beacon of industrial excellence, specializing in the manufacture and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and beyond. Our steadfast dedication to quality and service excellence underpins our operations, with each machine exemplifying the zenith of industry standards. By integrating cutting-edge technology from Taiwan and Germany, our production processes utilize state-of-the-art equipment, resulting in machines celebrated for their precision, stability, and dependability. Adept at meeting complex, high-demand machining needs, our products have earned international acclaim and a loyal clientele across Asia, Europe, South America, and North America. Through our committed partnerships worldwide, we create substantial business value, jointly shaping the future of the industry.
