Flexem Fe7070we New Generation Iot HMI with Industrial ABS Economic Frame

Product Description

Products Overview
Flexem FE7000 series HMI is new generation IOT HMI, it is with high performance, industrial ABS economic frame, low cost, high reliability. Fully new cover mold setting, optimize back cover design in 6000 series HMI, removing back cover design, adding some antenna holes to increase products design, and more resolution models can be selected to meet different application needs.
FE7070WE is traditional HMI products by optimizing 1G, 4-core A7 processer, it is with quite high resolution and applicable for various industrial production scene.

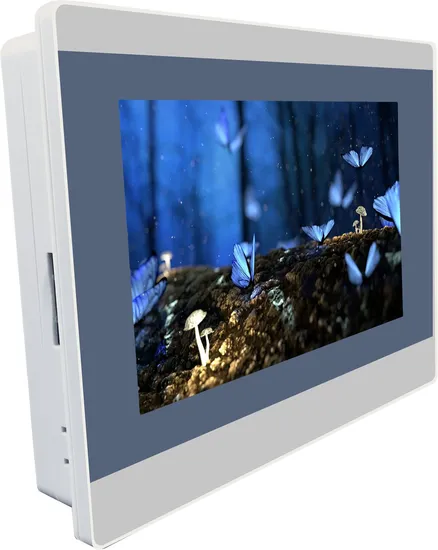

Products Outlook
Wiring Definition

Power Terminals (Pin1~2 from left to right)
	Pin1	0V
	Pin2	DC24V
DB9 serial Ports
	Pin	COM1	COM3
	Pin1	Rx-(B) (RS422/485-)
	Pin2	RxD (RS232)
	Pin3	TxD (RS232)
	Pin4	Tx- (RS422)
	Pin5	GND
	Pin6	Rx+(A) (RS422/485+)
	Pin7		RxD (RS232)
	Pin8		TxD (RS232)
	Pin9	Tx+ (RS422)
485Terminals(Pin1~2 from left to right)
	Pin1	A+(COM2 RS485)
	Pin2	B-(COM2 RS485)
EEthernet Ports
	RJ45	Used to Ethernet communication with controllers or used for server connection.
Type-C OTG Interface
	Type-C	Slave Ports Function: used for program downloading and testing.
		Main Ports: used for U-DISC connection, scanner etc(it needs equip Type C and USB Type A conversion line).
Antenna Terminals
		Antenna Ports(IOT function model with open antenna hole).

FLEXEM is committed to offering you customized integrated solutions, optimal design and most suitable quality products to meet your detailed requirements.
FLEXEM endeavors in saving your developing time, minimizing your operation costs to enable you to focus on your core-competitiveness.
FLEXEM is dedicated to providing you with easy-to-use hardware platform and developing platform. With professional design and friendly interface, FLEXEM is devoted to inspiring your creativity and maximizing your efficiency and productivity.
FLEXEM helps you simplify the complex procedures wholeheartedly.
Combining "Flexible" and "Embedded", FLEXEM(-transliteration of English name) comes to design the flexible embedded operating systems for you.
With head office and researching & developing center (R&D) in Shanghai, factory and logistics center in Shenzhen, FLEXEM Technology (Shanghai ) Co., Ltd. is committed to design the flexible embedded operating systems to optimize your resources by simplifying the operation, minimizing operation and training costs, and maximizing efficiency and productivity.
With independent developed software and hardware platform, FLEXEM provides you with professional software and hardware products and customized solutions. It includes industrial resistive / capacitive multi-touch HMIs, programmable PLC, text displayer, gateway etc.

---
