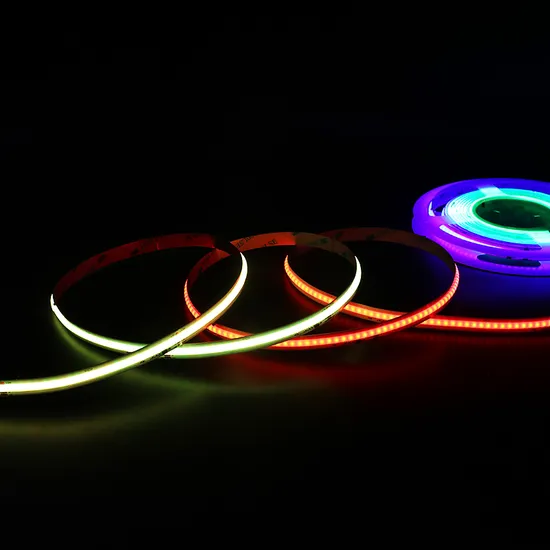

IP20 720LEDs/M COB Strip COB Pixel Dream Color Strip Home Decor Living Room Magic RGB COB LED Strip

Product Description

720LEDs/M 12mm COB Light Strip Color Pixel COB KTV Bar Magic RGB LED Strip
Product Parameter

Model No.	HSY-FSCOBG720W12CRGBSPIW32V24-P20
LED Quantity	720LED/m
Color Temperature	RGB Pixel
Color	R:620-625NM G:520-525NM B:620-625NM
Voltage	24V DC
Power (w/m)	32W/m
CRI(RA>)	/
PCB width	12mm
PCB materials	2Oz Double-Sided pure copper Circuit Board
LED Suppliers	XUYU / Honglitronic / Samsung
LED Chip Brand	Sanan ( Epistar optional )
LEDs Material	packaged by 99.99% pure gold wire, red copper pad
LED BINs	3-Step/5-Step, same BIN for each order
Lumen	2500-3100mcd/led
Lm/M (±10%)	/
IP Rate	IP20 (33) ( IP67 / IP68 optional )
Cutting min unit	50mm
View Angle	180°
Product Size (mm)	5000*12*1.8mm
Package(m/roll)	5M/roll (1m/roll, 3m/roll, 10m/roll, 20m/roll, 50m/roll,100m/roll. Customized length available )
Working Temperature (ºC)	-20-60°
Adhesive Tape	Original 300LSE 3M tape
Dimmable	Yes
Warranty	3 Years

Our advantage:
-High quality SMD LED chips:
Our SMD LED use high quality 3chips in one LED SMD COB RGB Pixel as light source with low light decline, strips have very good heat dissipation, long life span. less than 3% decline after 5000 hours working.
-High quality double layers PCB:
Our flexible PCB are all high quality Electrolytic copper double layers FPC at least 2 ounces, or 3 ounces in particular models. So there is low voltage drop and very good heat dissipation too.
IP20 ( Bare Board ) be used indoor and keep away from rain wetIP67 ( Silicone tube protection ) fit on indoor and outdoorIP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater
Cost-effective and easy installation
a, Led strip is large mechanized production, it is economical and affordable.
b, Easy installing way
-Good color temperature consistency and stable quality:
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Applications: . Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
- 3 years warranty, >5 years working life! less brightness down!
- TUV CE, FCC, IEC/EN62471, LM-80 Certificates.
- More than 100,000meters production each month!
- Quick delivery time 3-5 working days

Model	LED quantity	Output Voltage	Power	PCB Width
HSY-FSCOB320W8C*W12V24-P20	320LEDs/m	24V DC	12W/M	8mm
HSY-FSCOB480W8C*W10V24-P20	480LEDs/m	12V / 24V	10W/M	8mm
HSY-FSCOB528W10C*W12V24-P20	528LEDs/m	12V / 24V DC	10/12W/M	10mm
HSY-FSCOB840W8RGBW12V24-P20	840LEDs/m	24V DC	12/14/16W/M	10mm
HSY-FSCOB840W8RGBWW12V24-P20	896LEDs/m	24V DC	12/14/16W/M	10mm

232312312131313212132 23
DC12/24V 2835 120leds/m	DC24V 2835 240leds/m	DC24V 2835 240leds/m 2rows	DC24V 2835RGB 240leds/m	DC12/24V 3535RGB 120leds/m

Packaging and shipping : 1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
Company:
FAQ:
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.

---
