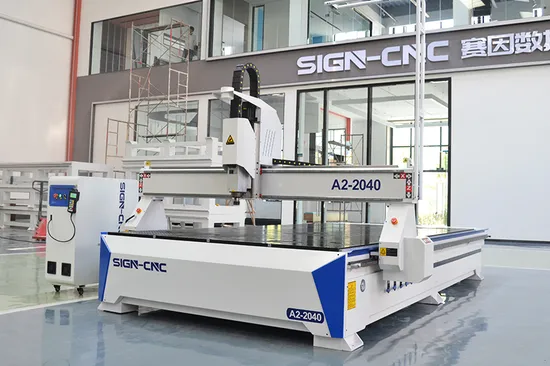

1325 Wood Door Engraving CNC Machine/Furniture Industry Using Woodworking CNC Router with Rotary Device

Product Description

1325 Wood Door Engraving CNC Machine/Furniture Industry Using Woodworking CNC Router with Rotary Device\
How to choose cnc router machine?
1.please tell us your processing material type?tell us your processing material type.
---for nonmetal engraving and cutting,choose standard part cnc router
---for metal engraving and cutting,optional water tank cnc router.
2.please tell us your material max size?tell us your material max size,we will help you choose.
we have standard size 400x400mm,600x600mm,600x900mm,1300x200mm, 1300x1800mm,1300x2500mm,ect. cnc wood carving machine Applications Field
1.Woodworking industry,Wooden door, furniture and decoration; Wooden crafts making; Redwood carving, Archaized furniture.Also can used in other industry.
2.Advertising industry, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
3.Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving.
Machine Main parts
Technical Parameters:

Model	SIGN-1325 wood 4 axis cnc router
X, Y Working size	1300*2500mm
Z feed Height	200mm
Table Surface	T-slot
X, Y Structure	Rack and Pinion Drive, TBI Square Guide Rail
Z Structure	TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	3.2 KW water cooling spindle
Spindle Speed	0-24000RPM
Rotary diameter	D=260 / 320mm
Drive Motors	Stepper motor and driver
Working Voltage:	AC220V /380V /50 /60Hz
Command Language	G code
Control System	NC-studio (options: DSP /Mach3 PC Software)
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Samples
Package and Certifications
After-Sales Service
1.One years quality guaranty ,the machine with parts shall be changed free of charge when if any problem during the warranty period(excluding the consumables)
2.Life time maintenance free of charge
3.Free training course at our plant
4.24 hours on line service each day ,free technical support
5.Machine has been adjusted before shipping
6.Provide technical service to the door.
Company Information
Jinan Sign CNC Equipment Co., Ltd. locates in beautiful city of Jinan. It's a high-tech enterprise, engaged in research and development, production, sales in the integration of motion control system integration, mechanical and electrical integration products.
Our products lnclude: advertising CNC router, woodworking CNC router, stone CNC router, embossment CNC router, CNC Laser engraving machine, CNC Laser cutting bed, CNC Laser marking machine, CNC Plasma cutting machine, cutting plotter and mould machine.

Our productions are widely used in advertising, gifts, electronic appliances, furniture manufacturing, organic glass, packaging and printing, all kinds of non-metal processing and cutting etc industry.
