High Purity Graphite Ingot Mould for Metling Casting Jewelry Tools

Product Description

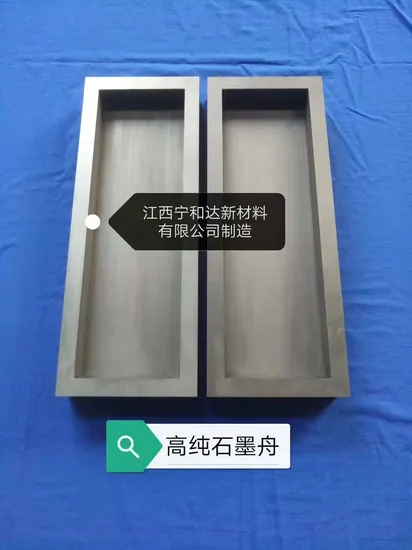

High Purity Graphite ingot mould for Metling Casting jewelry tools
Graphite mould for continuous casting is mainly used for continuous casting of nonferrous metals such as gold, silver, copper and aluminum.
:,,,,,,,,,,,.
Product features: high temperature resistance, anti oxidation, anti chemical erosion, self lubrication and good thermal conductivity. We choose graphite materials with high density, high strength, uniform structure, small porosity and good thermal shock resistance. It is made by precision processing, which has the characteristics of improving the quality of metal products and prolonging the use time.

Grade	MSS80	MSS85	MSS85
Grain Size (μm)	25	25	25
Bulk Density (≥g/cm3)	1.82	1.85	1.90
Compressive Strength (≥MPa)	60	65	70
Flexural Strength (≥MPa)	30	33	35
Porosity (≤%)	17	14	11
Specific Resistance (≤μΩm)	12	12	12
Ash Content (≤%)	0.08	0.08	0.08
Shore Hardness	50	55	60

The ash content can be purified to 30ppm according to the requirement. The above index data is the standard value, not the guaranteed value.
High Purity Graphite ingot mould for Metling Casting jewelry tools

---
