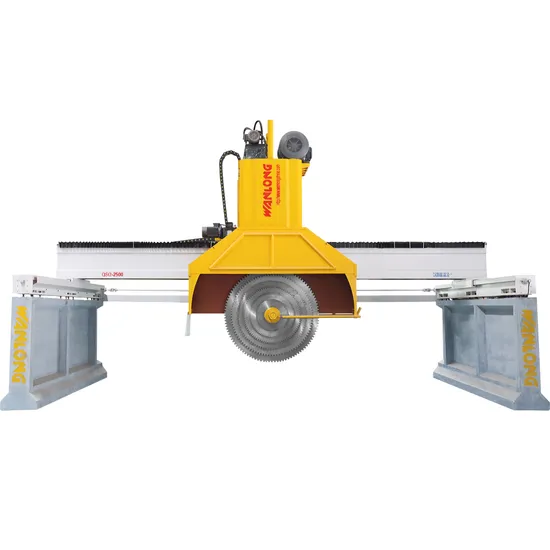

Multi Blade Stone Granite Bridge Saw Block Cutting Machine

Product Description

Bridge Multi-Blade Block Cutting Machine Stone Block Cutter Machine Technical Parameters/Configurations:
HYDRAULIC TYPE
a) Main motor power: 45KW
b) Voltage: 380V, 50HZ
c) Strong Cast Iron HT200 used for manufacturing the machine
d) Text Display for Machine operation (Touch Screen Display upon request)
e) Installed with PANASONIC PLC and Inverter, programmable and fully automatic
f) Equipped with the ENCODER for up-and-down, left-and-right, front-and-back movement
g) Lenth of Crossbeam: 7.26meters Length of sidebeams: 3.7meters
Max.cutting size: 3600x2100x950mm (LxWxH) For QSQ-2200B
Max.cutting size: 3300x2100x1100mm (LxWxH) For QSQ-2500B
h) Equipped with the anti-top device on sidebeams, which can do good protection on the machine
when cutting quite hard granite
i) Anti-water cover equipped on the rubber wheels
j) Equipped with reducer RV130-60
k) Double V-Shape guide rails enhance the smooth cutting and movement
l) Head cross movement is driven by precision rack & gear
QSQ-2200 QSQ-2500 QSQ-3000

Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000

Packaging & Shipping
DELIVERY TIME:

35-45days as per produciton schedule and quanity.
if your order is in our stock, we can effect shipment once received your payment

PACKAGE:
Suitable for seaworthy container shipment

WARRANTY:
12 MONTHS

SHIPMENT WAY:
-by sea: can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport.
-you can consult us when you make inquiry.

Our Services
Service:
- fast deliver time: 7- 15 days.
to rough idea: most of order lead time is 7 days-10days.
-consistent quality control:
Raw material: have advanced device for diamond, powder ete inspection;
Production: production procedure been strictly controlled by quality controlled department;
Finshed product: All produced product has been inspetion and approved before shipment.
-any quality related problem that we are care and will solved for client.
SALES NETWORK


Europe:
Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,
Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
South Asia:
India, Pakistan, Bengal, Sri lanka, etc
South East Asia:
Indonesia, Vietnam, Thailand
Mid East:
Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
Africa:
Egypt, Nigeria, Kenya, Ethiopia, South Africa,
America:
USA, Canada, Mexico, Brazil, Venezuela, Chile, etc
Oceania:
Australia, New zealand
Best Regards
Selina Zhang
MARKETING DEPARTMENT




WANLONG GROUP
- WANLONG DIAMOND TOOL CO., LTD
- WANLONG STONE MACHINERY CO., LTD
Factory: NO.13 Zhitai Road, Quanzhou Economic & Technology
Development Zone, FUJIAN, CHINA
