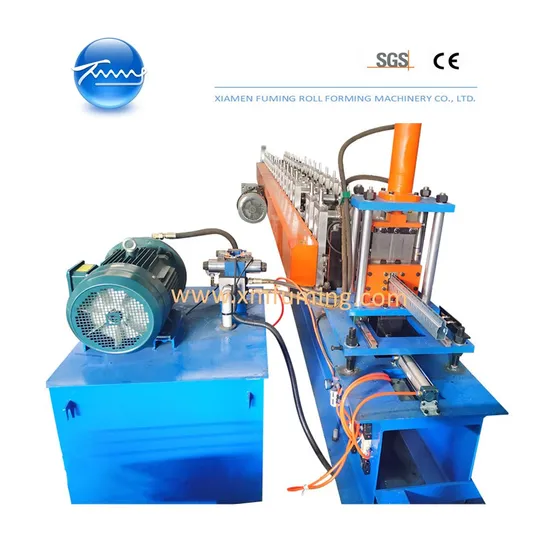

| ROLL FORMING MACHINE FOR YX72-33 UPRIGHT PROFILE |
|
| Material Specification |
| Thickness | 1.5mm to 2.0mm |
| Material | GI, cold rolled steel |
| Yield strength | 235MPa |
| |
| Machine Components |
| |
| 1.5Ton*300mm Decoiler With Pre-leveller |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 510±30mm |
| Coil outer-diameter | Max.1200mm |
| Coil width | Max.300mm |
| Inverter | Delta |
| Pre-Level Device with 3 over 2 shafts to remove the Coil-set, Manual control |
| 2 stages of rollers for feeding in |
| Pre-leveling shaft and feed-in roller | 45# steel, CNC, hard chrome coated |
| Power for feeding-in | 2.2KW |
| |
| 100 Tons Press |
| Servo motor feed-in device | 5.5KW×2 |
| Step length | 300mm |
| Quantity of punching mould | One set |
| Mateiral of punching mould | Cr12Mov, heat treatment |
| |
| |
| Roll Forming Machine |
| Driving system | Gear/Sprocket |
| Forming station | 18 stages, with twist-adjusting device |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Shafts Diameter | Φ75mm |
| Motor | 18.5KW, frequency inverter control |
| Production speed | Approx. 18m/min |
| Water cooling system | One set |
| |
| Hydraulic PostCutting device |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 11KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Control Voltage | 24V |
| |
| Pneumatic unloading rack | 10 meters lobg |
