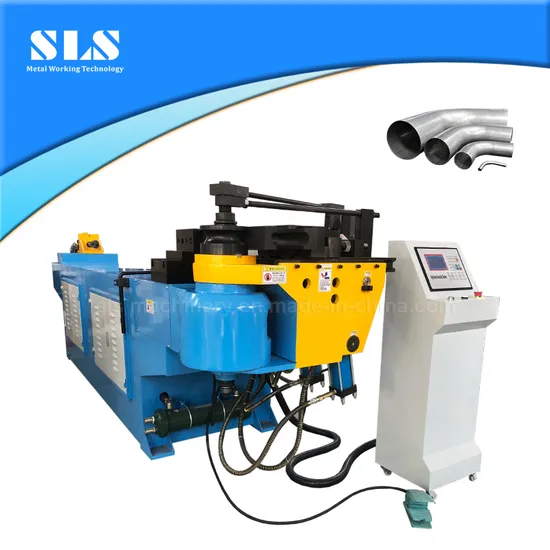

1 2 3 4 5 Inch Copper Aluminum Stainless Steel Automobile Parts, Exhaust or Oil Pipe, Electric Nc Metal Tube Bender, Simple Semi Automatic Hydraulic Pipe Bender

Product Description

Product Description
1 2 3 4 5 Inch Copper Aluminum Stainless Steel Automobile Parts, Exhaust or Oil Pipe, Electric Nc Metal Tube Bender, Simple Semi Automatic Hydraulic Pipe Bender
Brief Introduction on NC Pipe Bender
SLS 1 2 3 4 5 Inch Copper Aluminum Stainless Steel Automobile Parts, Exhaust or Oil Pipe, Electric Nc Metal Tube Bender, Simple Semi
Automatic Hydraulic Pipe Bender has an NC control unit to allow the operator to program the bend degree (C axis)-the standard memory
can store up to 16 programs each with 16 sequential bends.
This allows the operator to select from the memory to bend sequence they require and load the tube and start bending. The rotating and
feeding (B&Y axis) are controlled manually. Other movements as die working,mandrel working are controlled by hydraulic.
Pipe Bending Machine combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic
solution for small to medium productions.


Features on NC Pipe Bender Bending Axis-by Hydraulic ,Feeding Axis-by Manual,Rotating Axis-by Manual.
Human Interface offers easy access to auto and manual operating modes.
Fully hydraulic movement on clamp die,pressure die and mandrel.
Available pipe material: steel, stainless, aluminum, titanium and brass...
Available pipe shape: Round,Square,Rectangle,Oval,Solid Bar,other profiles...
Equiped with encoder ensures the accuracy and stability of bending.
Equiped with adjustable speed valve on pressure die ensures the synchronization of bending.
Water cooling system ensures the equipment long-time work stably under the high temperature.
CE&ISO 9001:2000.
Main Technical Parameters Sheet

Model	38NC	50NC	63NC	76NC	89NC	114NC	127NC	165NC	220NC
Capacity	38x2mm	50x3mm	63x4mm	76x4mm	89x6mm	114x8mm	127x10mm	165x14mm	220x16mm
Bending Radius	1.5D	1.5D	1.5D	1.5D	1.5D	1.5D	1.5D	1.5D	1.5D
Bending Degree	0-190	0-190	0-190	0-190	0-190	0-190	0-190	0-190	0-190
Power	4Kw	5.5Kw	7.5Kw	11Kw	11Kw	15Kw	22Kw	33Kw	45Kw

FAQ:

1.Q: Are you a manufacturer or trading company?	A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2.Q:Where is the nearest airport to your company?	A: Wuxi Airport or Shanghai Airport.
3.Q: How to choose the pipe/tube bending machines?	A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Bending radius value - Bends NO. on one pipe - Bending shape in 2 or 3 dimensional - Other requirements
4. Q: Do you have CE certificate?	A: We have CE certificate.
5. Q:How about your service?	A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.

---
