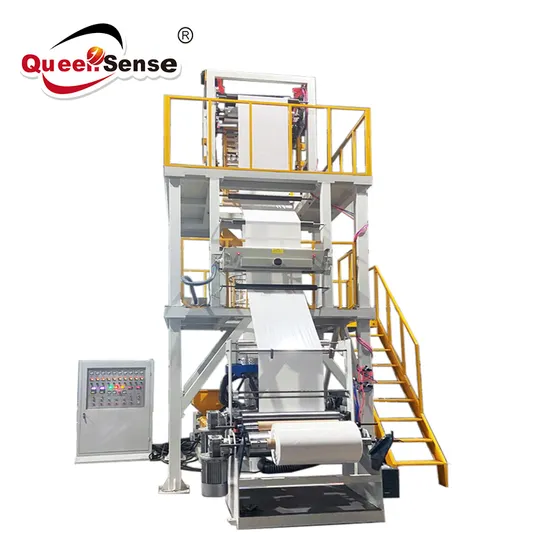

Factory 25-80kgs 2.5t PE Nylon HDPE Blown Extruder Plastic Film Blowing Machine Sj-A50/55/60/65

Product Description

Performance Introduction:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrided and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones. Application:
It is used to blow low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic films and other films, and is widely used in civil and industrial package such as food, clothes, garbage bags and T-shirt bags.
Optional:
1)Automatic suction machine
2)Air compressor
3)Quick screen change
4)Rotary die device
5)Twin-station winding-up machine
6)Automatic lifting
Main technical parameters:

Model	A50	A55	A65	A65-1
Diameter of screw	φ50	φ55	φ65	φ65
Lay-flat width of film	100-600	200-800	300-1000	400-1200
Thickness of single film face	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. extruding capacity	35	50	65	80
Length-diameter ratio	28:1	28:1	28:1	28:1
Power of main machine	11	15	18.5	22
Power of traction motor	1.1	1.1	1.5	1.5
Heating powe	15	17	23	25
Overall dimensions	4800 x 1900 x 4100	5500 x 2100 x 4700	6500 x 2300 x 4900	6500 x 2500 x 5600
Weight	1.5T	2T	2.3T	2.6T

---
