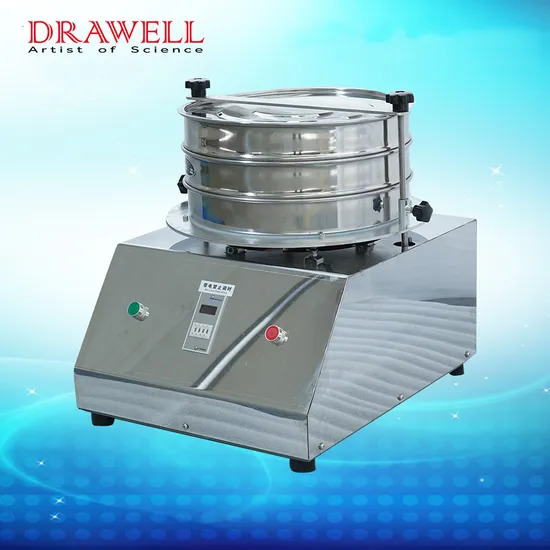

Laboratory Test Sieve Shaker Sifter Stainless Steel Vibrating Sieving machine

Product Description

Product Description automatic sieve shaker
Features High efficiency, exquisite and durable design, any kind of powder, liquid can be sifted Small size, do not occupy space to move easily. Screen machine can be placed up to eight test sieves (including bottom sieves) , can be a particle at the same time accurate separation of 2-7 particle segment. Automatic shutdown time. To ensure experimental repeatability. Full function and easier operation. Noise, light weight. Platform operation, no need to be fixed. Adjustable amplitude.
Function and principle
Standard vibrating screen machine uses vibrating motor as the vibration source. The vibration of vibrating motor drives the vibration of the screen machine base, and then passes through the base to the standard test screen installed on the base, the material particles smaller than the mesh of the test screen are screened into the lower test screen, so that only the same size material is left in each test screen. Achieve the separation of different particle size and determine the particle size composition of the material. So that the materials in the test screen can effectively screen, classification, filtration purposes.
Specification Table:

Model	DW-S200	DW-S300	DW-S400
Adjustable sieve diameter	Ø200, Ø100, Ø75	Ø300, Ø200	Ø400, Ø300, Ø200
Sieve size	0.025~160mesh	0.025~200mesh	0.025~280mesh
Motor power	0.125kw	0.18kw	0.25kw
Noise	<50dB	Less than 50dB	Less than 50dB
Amplitude	0~3MM	0~3MM	0~3MM
Vibrational frequency	1440hz/min	1440hz/min	1440hz/min
Size	400*300*300+N*50	470*430*370+N*50	590*485*360+N*60
Voltage	220V 50HZ	220V 50HZ	220V 50HZ
Weight	30kg	40kg	65kg

Detailed Photos
Certifications
Packaging & Shipping
FAQ

---
