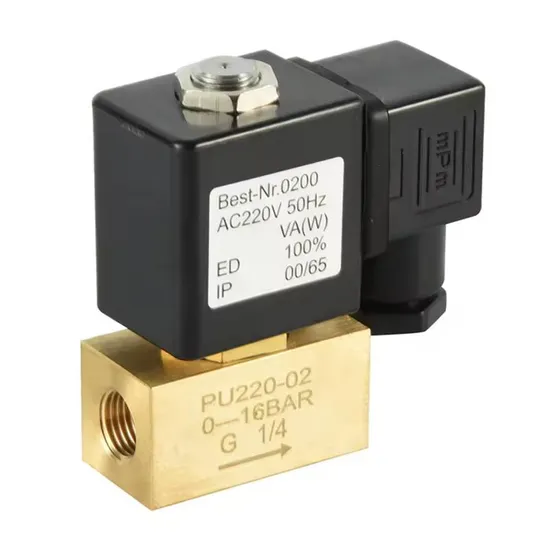

1/4′′ PU220-02 2/2 Way Brass Water Valvula Solenoide Direct Acting Solenoid Valve 110VAC 220VAC 24VDC

Product Description

Jery is a Solenoid Valve manufacturer and exporter in Ningbo, China, Fenghua,which has more than 10 years experience. We offer a wide selection to meet your application requirements for pressure range, temperature range, orifice size, connection style, and voltage. In addition, there is also a wide variety of housing and seal material selection.
According to different valve body materials, solenoid valve is divided into:
1.Brass Solenoid Valve2.Stainless Steel Solenoid Valve3.Plastic Solenoid Valve
According to different structure design, solenoid valve is divided into:
1.Direct Acting Solenoid Valve2. Semi-Direct Acting Solenoid Valve
3. Pilot Operated Diaphragm Solenoid Valve
4. Pilot Operated Piston Solenoid Valve Direct acting for fast on / off Durable stainless Armature Ex-proof coil are avaiable Good for low pressure operation Compact and good appearance. Directacting,diaphragm structure,can work at zero pressure. Coil made from H class wire,thermosetting plastic encapsulatin,reach IP65 protection class with plug
Technical Data

PU220 Series	PU220-01	PU220-02	PU220-03	PU220-03	PU220-04	PU220-06	PU220-08
Orifice Size	1.5mm	2.3mm	8.0mm	13.0mm	13.0mm	20.0mm	25.0mm
Port Size	1/8''	1/4''	3/8''	3/8''	1/2''	3/4''	1''
Medium	Water, Oil, Compressed Air
Action	Direct Lifting Diaphragm
NC/NO	2 Way, Normally Closed / Normally Open
Body Material	Brass
Seal Material	NBR, EPDM, FKM, Si
PressureRange (bar)	AC: 0-8.5, DC: 0-7.0		AC: 0-10.0,DC: 0-7.0	AC: 0-8.5,DC: 0-7.0	AC: 0-8.5,DC: 0-6.0		AC: 0-7.0,DC: 0-5.0
Temp. Range	-5 to +80ºC (NBR), -5 to +150ºC (EPDM, FKM)
Power	22VA

Main Dimension

PU220 Series	A	B	C	R
PU220-03	66.5	101	48	3/8''
PU220-04	66.5	101	48	1/2''
PU220-06	71	107	58	3/4''
PU220-08	96	120.5	70	1''

---
