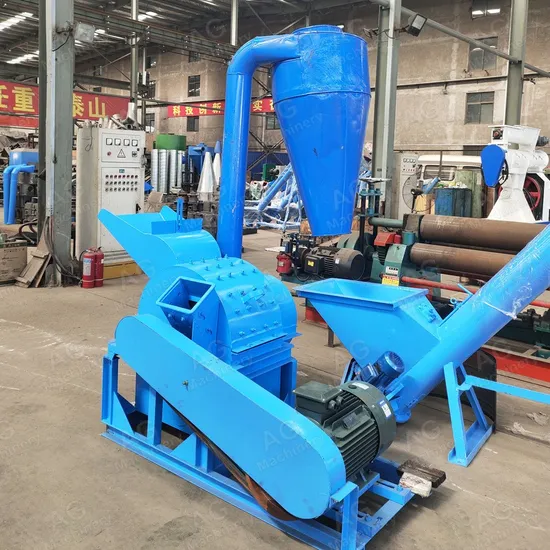

High Capacity Biomass Crusher Maize Hammer Mill for Chicken Cattle Feed Plant

Product Description

High Capacity Biomass Crusher Maize Hammer Mill for Chicken Cattle Feed Plant Product Description
Introduction:
The 9FQ series hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the particle size. If the size is larger than screen, the bigger particles will be sent back to be grinded again until they can get though the screen.

Our hammer mill is the special milling equipment for materials of < 50 mm (diameter),< 300 mm (length), such as tree trimmings, wood pieces, crop stalks, rice husk, cotton stalk, cottonseed skins and so on. This hammer mill contains some rotors which are mounted by many hammers.
The hammers swing following with the rotor at a high speed. And then the materials fed into a feed hopper are shred by the hammers. At last the materials are expelled out and sieved by the exhaust fan and screen. The size of the grinded material depends on the size of screen and the rotation speed. Product Parameters

Model	Power (kw)	Capacity (straw grinding)	Weight (kg)	Dimension (mm)
9FQ-420	7.5 kw	400 -500	350	1100 x 550 x 850
9FQ-500-28	15 kw	600 -800	450	1250 x 650 x 1000
9FQ-500-40	22 kw	900 -1000	750	1400 x 780 x 1250
9FQ-500-50	30 kw	1000- 1500	900	1600 x 850 x 1350
9FQ-500-60	37 kw	1500- 2000	1300	1750 x 900 x 1550

Raw materials of Feed hammer mill:
Grain, straw, corn, rice husk, wheat, corn straw, corn stalk, corncob, beans, maize, spice, herb, wood chips, tree branch and various biomass etc
Our Advantages
Features:
1. Compact structure, small size, light weight; with steel structure,
2. Easy to operate
3. Safety and reliable: special device to stop the feeding knife accidents,
4. Support various power devices: electric motor, diesel engine, and tractor
5. High quality steel Blades, super wear resistant
6. Adjustable output sizes: accordingly by manual method
7. Better feeding device: new design feeding roller added before pressing roller
Application of hammer mill:
1) Ideal helper of the family farmed cattle, sheep, poultry, horse, rabbit and etc
2) This series of feed hammer grinder have advantage of compact structure, strong and durable, safe and reliable, easy operation.
3) Low noise & vibration, high Efficiency and low energy consumption, etc. With double discharge to connect material and more convenient to use
4) The spare part of hamm mill machine completely adopt high quality material, outsourcing parts adopt domestic optimal products, the whole machine quality is reliable, long-lived.
Internal Structure
Spare Parts of Hammer Mill
Hammers Screens with different apertures
1) Raw Material: Carbon steel; 1) Screen Hole Diameter: 1-30mm, optional
2) We suggest to sharpen or change the hammer once a while when significantly lower of 2) It comes with different capacity with different size of screen hole.
output appears; 3) You can use different sieves to get different sizes final products.
3) The blades are easy to install and maintain;


Packaging & Shipping

---
