New Released Ndi Hx 1080P IP PTZ Camera 20X for Video Conference/ Broadcasting Compatible Skype Microsoft Teams

Product Description

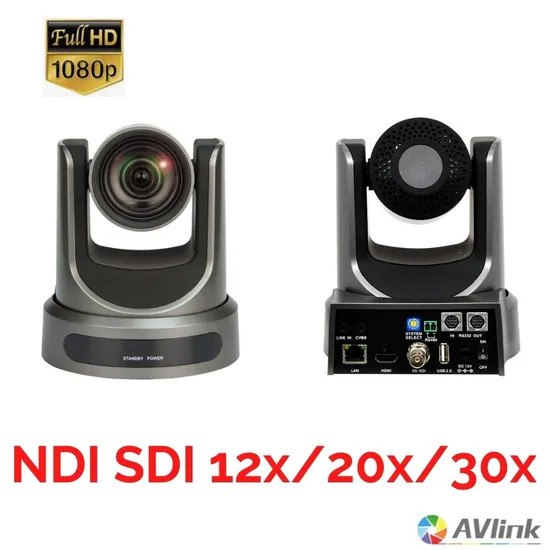

AVL-HD620 PTZOptic HDMI SDI IP Output NDI 20X Zoom NDI Video Conference PTZ Camera
Key Features
Sensor: 1/2.7" CMOS, 207MP
Video Format: Full HD1080P60
Zoom: 20 x Optical
Output: 3G-SDI, HDMI, IP
Protocol: VISCA, PELCO-D/P
Horizontal Field of View: 60.7°
Presets: 255
Functionality
H.265 Support
The first H.265 encoding support conference video camera in the world, enabling full HD 1080p video stream by ultra-low bandwidth.
1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
Local Storage
Support local storage module, directly recording to local USB flash disk without NVR.
Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
Abundant & Perfect Interface
Support HDMI output, 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time.
20x Optical + 16x Digital Zoom
Use TAMRON high quality super telephoto lens, support 20x optical zoom, 16x digital
Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.
20x Video Conference Camera Specification:

Camera
Video CMOS Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Frame Rate	1080P60/59.94/50/30/29.97/25,1080I60/59.94/50,720P60/59.94/50/30/29.97/25, 480I60, 576I50
Lens Zoom	20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Horizontal Field of View	3.36°(T)-60.7°(W)
Vertical Angle of View	34.1° ~ 1.89°
Min Lux	0.5 lux @ (F1.8, AGC ON)
Shutter Speed	1 to 1/10000s
White Balance	Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Image Freeze	Support
Vertical Flip & Mirror	Supported
Working environment	Indoor

Mechanical
Pan Rotation Angle	±170°
Tilt Rotation Angle	-30°~ +90°
Pan Speed (per second)	1.7° ~ 100°/s
Tilt Speed (per second)	1.7° ~ 69.9°/s
Presets	255 Presets
Number of Preset	0.1°
PTZ Control Protocol	Sony VISCA and PELCO D/P

IPC Features
Video Compression	H.265/H.264/MJEPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920x1080, 1280x720, 1024x576
Sub Stream Resolution	720x576, 720x480, 320x240
Video Bit Rate	128Kbps ~ 8192Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Support protocols	TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

Interface
HD Output	1xHDMI: Version 1.3
	1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output	1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface	1xRJ45: 10M/100M Ethernet Interface
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB	1xUSB2.0: Type A female jack
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
	1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
	1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)

General
Dimensions (W x H x D)	169mm x 142mm x 164mm
Weight	1.35 kg
Input Voltage	DC 12V
Current Consumption	1.0A (Max)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption	12W (Max)
Color	Black, Silver, or special order

Case story:
Similar product:
About AVLink Video Conference Solution: Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Conference System.
Shenzhen AVLink is a professional AV integration and conference solution supplier, specialized in high-definition video PTZ camera and PTZ keyboard controller over 10 years. Our production series from indoor camera such as High-Definition video conferencing PTZ camera, MCU, All-in-one camera terminal, HDBaseT, tracking camera 4K camera to Outdoor camera. range from 5x, 10x, 20x, to 30x optical.
We offer interactive whiteboard from 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, and 86inch, even up to 98inch and 100inch.

Which Certificate AVLink Has? Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), and RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)
Which Kind of Service You Will Get?
Provide free marketing material to distributor Get the affordable price of hot item PTZoptics camera Enjoy 7/24 after-sales service Ask Us Anything(FAQ)1.Q: Are you a Manufacturer or Trading company?A: Manufacturer with more than 10 years experience.2. Q: What's your main products?A: We have been focusing on the production of Video conference camera and interactive whiteboard for 10 years.3.Q: Can you do OEM / ODM for us?A: Of course. Let us know what you need, we'll do it for you.4. Q: Can we visit your factory?A: Yes, warmly welcome to visit our factory anytime.
5. Q: What is your delivery time?A: For samples, 3-5days
For bulk order, it depends on your quantity and requirements on OEM / ODM.
6. Can I be your distributor?
For distributor issue, please confirm with our director. Send inquiry now!

---
