Advanced FRP GRP Scrubber for Chemical Tail Gas Treatment Solutions

Product Description

Product Description FRP tank is made with fiberglass and resin with filament winding process, it's characteristics are:
Light weight, its density is 1.5-1.9, equals one forth of the steel, but its strength is higher. Corrosion resistant, we can select different kind of resin against the variety of the media, such as acid, alkaline, salt and oil etc. The inner surface is very smooth, the roughness coefficient is 0.0084, it is easier to clean, and has good sanitary property. Good property against low temperature, it can be used under the condition of -80ºC. Good thermal insulation property, its thermal expansion factor is 2*10-5/ºC, the thermal conductivity is 0.2 Kcal.m/m2.h. ºC. The formation is easy, maintenance is convenient and it is suitable for the comprehensive equipment, the diameter is more than 4000mm can be fabricated on jobsite. It's volume is 1m3-5000m3, and already be widely used for Chemical, Petrochemical, dyeing, pharmaceutical, metallurgy, brewing, water treatment, chlor-alkali, etc many different industries.

GRP tank is composed of inner layer, the structural layer and outer layer. The Inner layer is included resin rich layer and middle layer
1 Resin rich layerIt is corrosion-resistant layer composed by resin coat and surface mat. The content of resin is more than 90%, and the thickness is not less 1.7mm. 2 Middle layerIt adopts E-chopped fiberglass and inner liner resin. The content of resin is from 65% to 75% and the thickness is not less 3.3mm. This layer can efficiently prevent the extension of fine cracks on inner surface. So it plays a role of double protection. 3 Structural layerThis layer reinforces the inner surface and leakage proof layer, resisting the out load of the tower and guarantee rigidity and strength of the pipe. It adopts the combination of E-glass woven fabric, helical winding and hoop winding. The adopted resin is structural type and the content is from 55% to 65%. The thickness depends on the calculation of the specific condition. At the production of this layer, our company adopt cross winding process, so it can avoid the occurrence of hoop cracks efficiently. 4 Outer surface layer It is ageing resistant layer. The resin adopted includes ultraviolet absorbent and paraffin, so it can efficiently prevent the tower from ageing under the ultraviolet radiation outdoors. The thickness is 1.5mm, the content of resin should be more than 90%.

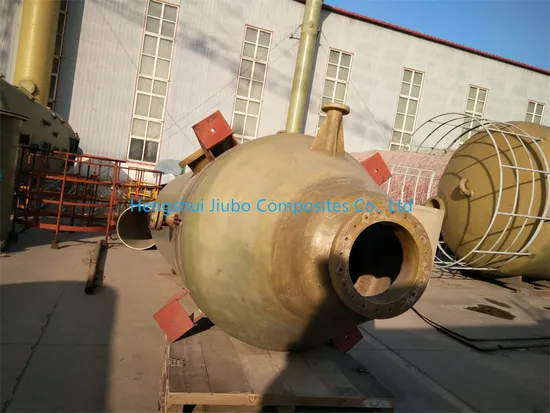

Detailed Photos
Product Parameters Dimension list of FRP horizontal chemical tank

Vol (m3)/Dia (mm)	DN1600	DN2000	DN2400	DN2800	DN3000	DN3600	DN4000
10	5270	3540	2640
30		9910	7060	5360	4780
50			11480	8610	7610	5560
80					11850	8500	7090
100							8680
110							9480
120							10270

Certifications
Company Profile
Hengshui Jiubo Composites Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Iran, Egypt etc, and won the support and trust from new & old customers.
Main products:
FRP tank and chemical equipment
High, middle, low pressure FRP pipe
FRP small-scaled wastewater treatment tank
FRP cooling tower
FRP pultrusion, molded series products
FRP polymer electrolytic cells
S/F, F/F double-wall oil fuel storage tank
Whole set of computer control filament winding machine
Whole set of FRP pultrusion machine
Whole set of FRP molded hydraulic press
Whole set of FRP grating molded machine
Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.
FAQ Q: Can you choose correct raw material for our FRP product?
A: absolutely, pls provide medium & concentration, temperature, pressure etc technical parameters, PP/FRP, PVC/FRP, PVDF/FRP etc pipe/tank/tower also are in our supply scope.

---
