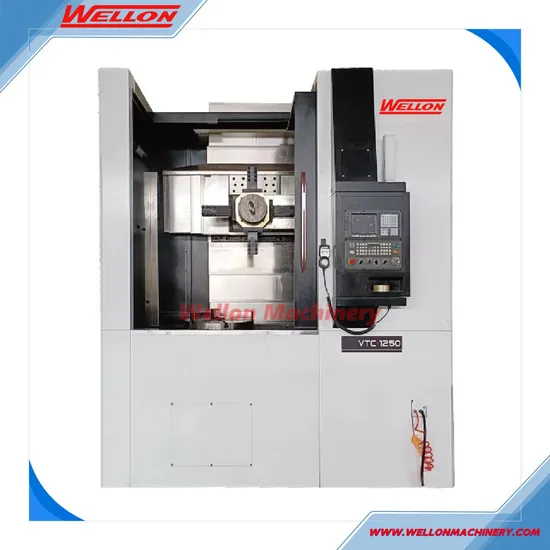

Vertical Turning Machine Vtc800 CNC Lathe Machinery

Product Description

Product Description
VTC600 CNC vertical lathe machine vertical machining center Product Parameters
This machine tool is suitable for processing various non-ferrous metals, ferrous metals and some non-metallic materials with high-speed steel tools and carbide tools.
The following processing procedures can be completed on the machine tool:
a. Turning inner and outer cylindrical surfaces and planes; various curved surfaces;
b. Turning inner and outer conical surfaces;
c. Grooving and cutting;
d. Drilling, reaming and reaming
The large castings of this machine tool use high-quality resin sand casting technology, and after rough machining, heat aging treatment is carried out to scientifically eliminate internal stress; the sliding surface of the machine tool is plasticized, which improves the wear resistance by more than 5 times and increases the accuracy of the guide rail. The sliding seat uses an independent automatic centralized lubrication device, and the electrical components use the international famous electric Schneider. The spindle bearing uses the D-class bearing.

Specification	Unit	VTC800
X axis travel	mm	500
Z axis travel	mm	650
Max. swing diameter	mm	850
Max. cutting diameter	mm	800
Max. cutting height	mm	600
Max.loading capacity	kg	500
Worktable speed range	rpm	50-1000
Worktable step range		stepless
Max.torque	N.m	350
Spindle bearing		NSK
Chuck size		21"
Turret		4 station
Motor power	kw	15/18.5
X/Z axis linear guideway width	mm	45/45
X/Z leadscrew diameter	mm	40/40
X axis motor	N.m	12
Z axis motor	N.m	22
X/Z axis rapid speed	m/min	12
Positioning	mm	±0.008
Repeat positioning	mm	±0.004
Machine weight	T	7.5
Dimension(L*W*H)	mm	2200x2200x3000

Standard accessories:
Fanuc 0i-TF control system
4 tools electronic turret
Full closed cover
Tool holder
Chuck jaw
Hexagon nut
Wedge
Ground screw
Washer
Chuck jaw screw
Spanner
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Side tool post
C axis
Power turret Company Profile
Certifications
Packaging & Shipping
FAQ

---
