Power Triode 3cx15000h3 as Oscillator

Product Description

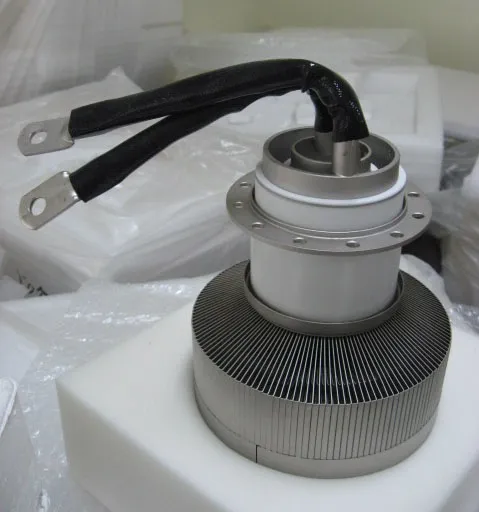

The 3CX15000H3 is a metal/ceramic, medium -mu, forced air cooled power triode, intended for use in radio frequency heating as oscillator. Max anode dissipation: 15KW, max frequency: 90MHZ, max grid dissipation: 1KW. Plentiful reserve emission is available from its 1000 watt filament. The grid structure is rated at 500 watts, making this tube an excellent choice for industrial service. The output power could be up to 40KW.
General Characteristic
Electrical

Filament voltage		6.3 V
Filament current		162±10 A
Amplification factor		20
Interelectrode capacitance	Grid - cathode	55 pF
	Anode - cathode	1.4 pF
	Anode - grid	34 pF
Max frequency		90 MHZ
Operating position Vertical		anode up or down
Cooling		Forced air
Max temp. at seal		250 ºC
Height max.		448mm
Diameter max		179mm
Weight		5.9 kg

MAXIMUM RATING ABSOLUTE
Class C RF industrial oscillator

Anode voltage	12000 Vdc
Anode current	6 Adc
Grid voltage	-1000 Vdc
Grid current	1.0 Adc
Anode Input power	60 kW
Anode dissipation power	15 kW

4CX150F 4CX250B/FG 4CX300A 4CX350A/F
4CX1000A 4CX1500A/B 4CX3000A 4CX5000A
4CX10000D 4CX15000A 4CPX150K 6T51 7T62R
E3062 7T69RB 7T84RB 7T85RB 8T25RA 8T85RB
8T87RB 3CX800A7 3CX1500A7 3CX2500A3/F3/H3
3CX3000A1/A7/F1/F7 3CX4500F3(YU-108)
3CX6000A7(YU-148) 3CX10000A3/A7/H3
3CX15000A3/A7/H3 3CX20000H3 3CW30000H3
3CW40000H3 3CW45000H3
6T51 7T62R(E3062C) 8T25RA8T85RB 8T87RB
7T69RB 7T84RB 7T85RB 3CX800A7 3CX1500A7
3CX2500A3/F3/H33CX3000A3/F7/A7 3CX4500/F3
YU-108 3CX6000A7(YU-148) 3CX10000A3/F3/H3
3CX15000A3/F3/H3 3CX20000H3 3CW30000H3
33CW40000H3 3CX45000H3 BW1184J2 BW1185J2
BW1608F RS3060CJ RS3500C TH382 TH347 TH5-6
ITL5-1 TH6-3A
Microwave CW Magnetrons:
2450MHz 850W 950W 1000W 5KW 10KW,
915MHZ 5KW 30Kw,
At the same time, please be kindly to provide us your type needed, and then we can give you our similar products to replace it!

---
