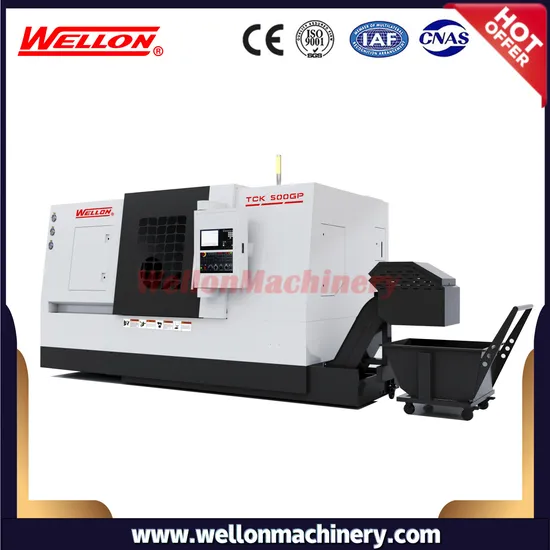

Slant Bed CNC Lathe Machine/CNC Turning Machine TCK400GP/TCK500GP/TCK550GP/TCK630GP/TCK800GP

Product Description

Product Description

Detailed Photos
Product Parameters

Features: The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc,
circular arc ,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication30 degree One-piece casting slant bed.
Technical parameter:

Specifications	TCK400GP	TCK500GP	TCK550GP	TCK630GP	TCK800GP
Max.swing over bed (mm)	Φ500	Φ500	Φ500	Φ580	Φ650
Max.turning diameter (mm)	Φ500	Φ500	Φ480	Φ560	Φ630
Max.swing over cross slide (mm)	Φ230	Φ230	Φ320	Φ360	Φ400
Max.turning length (mm)	520	750	580	1000	1000
Spindle nose	A2-6	A2-6	A2-8	A2-8	A2-8
Chuck size	6"	8"	10"	10"	12"
Spindle motor power (kw)	11-15	11-15	11-15	11-15	11-15
Max.spindle speed (rpm)	4200	4200	2600	2600	2600
Spindle bore (mm)	Φ66	Φ66	Φ87	Φ87	Φ87
Max turning Dia Bar through spindle hole(mm)	Φ52	Φ52	Φ72	Φ72	Φ72
Slant bed angle	30°	30°	45°	45°	45°
X/Z axis leadscrew (mm)	32/40	32/40	32/40	40/50	40/50
X axis limit Travel (mm)	270	270	250	350	350
Z axis limit Travel (mm)	610	810	620	1120	1120
X/Z axis motor torque (N/m)	11/11	11/11	21/21	21/21	21/21
X/Z axis linear guideway (mm)	45/45	45/45	45/45	55/55	55/55
X/Z axis accuracy (mm)	0.008	0.008	0.008	0.008	0.008
X/Z axis repeat accuracy (mm)	0.005	0.005	0.005	0.005	0.005
Tailstock quill diameter (mm)	Φ80	Φ80	Φ100	Φ100	Φ100
Tailstock quill travel (mm)	80	80	120	120	120
Tailstock travel (mm)	480	480	670	1250	1250
Tailstock taper	MT5	MT5	MT5	MT5	MT5
Machine dimension (mm)	4200x1900x2450	4200x2000x2450	5050x1750x2150	3170x1180 x1700 Body size	4400x1180x1700 Body size
Weight (kg)	3600	4200	3500	4800	5500

Standard accessories:
Fanuc 0i TF controller
Main motor and Drive servo motors from Fanuc
Hollow hydraulic chuck from Taiwan
Hydraulic tail stock
Hydraulic turret 12 stations from Taiwan
X,Z axis Linear roller type guide way Taiwan
Ball leadscrew Taiwan
Bearings from Japan
MPG
Chain type chip conveyor
Cutting Cooling system
Work lamp
Central auto-lubricating system
Tri-color warning lamp
Heat exchanger in cabinet
Full closed guard
Leveling bolts and blocks
Tools and tool box
Optional accessories:
Power turret 12 positions
C-axis
Y axis
Axial power head
Radial power head
Tool probe renishaw
Air conditioner in cabinet
Bar feeder, servo motor type
Automatic part catcher price
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
