CNC Outer Dia: 50mm Cylindrical Centerless Grinding Lathe Grinder Machine From China

Product Description

Product Description
CNC centerless grinding machine HFC-2008HNC advantage

High quality cast iron, using low frequency melting furnace to ensure the quality of castings.
After normalization treatment and 1.5 years of natural aging, the internal stress of the bed is eliminated, ensuring the accuracy of the bed and ensuring no deformation.
The guide rail surface undergoes high-frequency quenching, precision grinding, and manual scraping, with high wear resistance and rigidity.
Stable bed structure design, the machine tool has extremely high overall accuracy.

The spindle is made of SNCM-220H high-grade alloy steel imported from Japan, which has been quenched and tempered, deeply cooled, and precision ground to achieve high spindle accuracy and speed.
The spindle seat adopts a high hydrostatic pressure patent, which can form a high-pressure oil film of 20-25KG/cm2, allowing the spindle to suspend in it. During operation, there is no contact or friction with the spindle seat, resulting in high rigidity and no wear, ensuring high-precision machining and ultra long working life.
High hydrostatic pressure spindle provides 3-year maintenance.

The spindle assembled through standard procedures has a rotation accuracy of<1.5 μm. Bringing high-precision grinding performance.
The fastest speed of the grinding wheel is 50m/s (hydrostatic pressure) and 35m/s (dynamic pressure), ensuring the optimal surface smoothness of the workpiece.
Guide wheel continuously variable speed (10-300rpm), suitable for different processing needs.

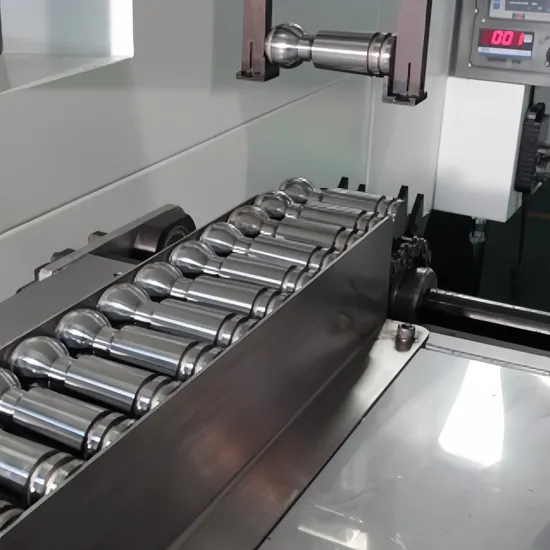

Professional R&D team specialize automatic loading and unloading system tailored to the specific requirements of grinding workpieces.
By grinding and stopping grinding, special shaped workpieces such as steps, chamfers, curved surfaces, and conical surfaces are processed and maintained with high precision.
Strong cutting ability, effectively reducing grinding frequency, and achieving high-quality surface treatment effect.


Product Parameters

Centerless Grinding Machine HFC-2008HNC main technical parameters
Work Diameter	Φ1-Φ50	mm
Grinding Wheel Size	Φ510*Φ254*205	mm
Guide Wheel Size	Φ305*Φ127*205	mm
Spindle Rotation Accuracy	0.0015	mm
Grinding Wheel Speed	600-1800	rpm
Guide Wheel Speed	0-300	rpm
Guide Wheel Feed Handwheel	3.5	mm/r
Guide Wheel Fine-tuning Handwheel	0.1	mm/r
Min. Workbench Feed	0.001	mm
Workbench Fine-tuning Handwheel	0.2	mm/r
Trimming Feed Handwheel	1.5	mm/r
Guide Wheel Tilt Angle	+6/-5	°
Guide Wheel Rotation Angle	±6	°
Weight	2950	kg
Size	L2350*W1960*H1550	mm

Detailed Photos

Work Piece
