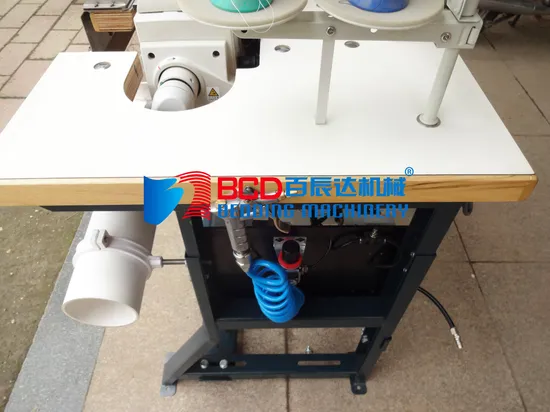

Heavy-Duty Flanging Machine for Mattress Manufacturing Machine

Product Description

Product Description Product Application This machine is used for both overlocking and doing flanging on the mattress panel border. Its feature as: Taiwan KINGTEX modified ,HoHsing motor , strong-suction waste collection device, synchronization belt feeder, 5thread ,with non-woven fabric stand and system .

Technical data
Max.panel thickness	70mm
Overlocking width	25mm
Pressor foot lift	15mm
Needle stitch	0-6mm (adjustable)
Max. sewing speed	5000 S.P.M
Rated pressure	0.5-0.8Mpa
Sewing head type	Japanese JUKI modified
Upper feeding belt	Yes
Waste collection device	Yes
Motor brand	Ho Hsing(Taiwan)
Total motor power	600W

Packing & Delivery

Packaging
Size	980 (L) * 1230 (W) *1050 (D)
Weight	4.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery

Standard export packaging: Outer package: standard export wooden cases. Inner package: plastic paper or wrapped with stretch film and etc.

Related Products Auto-Flip Mattress Machine (BWB-4B) 91.8% Response Rate
High Quality Tape Edge Mattress Machine (BWB-2A) 91.8% Response Rate
Mattress Tape Edge Machine ( BWB-6) 91.8% Response Rate
Certifications Our Service Pre-Sales Service 1. Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
After-Sales Service 1. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
2. 1 year free warranty, Lifetime technical service support. Exhibitions FAQ Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. Other payment terms can also be negotiated.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
