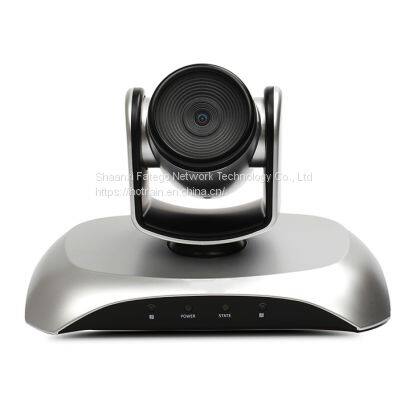

FY1080 1080P 30FPS USB2.0 355 H.264 Full HD PTZ Conference Camera
Using H.264/MJPEG dual code streaming format, the camera video stream occupies less bandwidth, so that the image is smooth. The maximum resolution is 1080P @30Fps. There is a built-in USB to 232 control decoder and 1 USB cable which can transmit the image and control the head movement.
Used for small or medium conference room.
Widely used for Video conferencing, distance learning, group training, monitoring, sports meeting, concert and Internet communication
Be compatible with many Apps or software, such as MSN, Skype, Zoom, Hangouts, etc.
Resolution
| H.264
| MJPEG
| YUY2
|
1280*720
| 30fps
| 30fps
| 10fps
|
1920*1080
| 30fps
| 30fps
| 5fps
|
Features:
1/2.7” Cmos sensor
Full HD color
1080P
30Fps
USB2.0
Driver free
Plug & Play
Pan/Tilt rotation
110°wide angle of view
Shooting distance: 30mm to 5 meters
Fixed focus
Beautiful appearance, unique shape, compact structure;
Smooth operation, no noise, adjustable head speed;
Precise positioning, no bias jitter when stopping, high reliability;
Long-term stable operation;
Easy to use.
Multi-point target preset
Auto focusing
Auxiliary switch control
IR infrared remote control
Specifications:
Image sensor
| 1/2.7” Cmos
|
Effective pixel
| 2.1 Mega Pixel
|
Resolution
| 1920 x 1080; 1280*720
|
White balance
| Auto/manual (UVC control protocol)
|
Gain Control
| Auto/manual (UVC control protocol)
|
Support resolution
| 1080P（1920x1080）; 720P（1280x720）
|
Frame frequency
| 30fps
|
minimum illumination
| Color: 0.1Lux
Black/White: 0.01 Lux
|
Lens
| 2.8mm
|
Video output format
| MJPEG, H.264
|
Communication control interface
| RS-232, RS-422, USB to RS232 (optional)
|
Control protocol
| VISCA, PELCO-D, PELCO-P
|
Baud Rate
| 9600/38400bps
|
Track routes
| 4
|
Preset
| 64
|
Rotation Speed
| 4 kinds of speed. (the rotation speed varies with optical zoom)
|
Image flip
| Horizontal and vertical image flipping is supported
|
Auto Level Scan
| Support
|
Pan Rotation/Boundary scan
| 355 Degree
|
IR remote control
| Support
|
Angle of view
| 110°
|
Noise Reduction
| Digital noise reduction
|
Exposure
| Auto/manual (UVC control protocol)
|
SNR(Signal to Noise Ratio)
| ≥50dB（AGC OFF）
|
Pan Rotation
| +/-177.5 ∑(0°- 355°)
|
Tilt Rotation
| +/-45 ∑(0°- 90°)
|
Pan / Tilt Rotation Speed
| 60 - 120°/sec
|
Power supply
| DC 12V 2A
|
Product size
| 250 x 160 x160mm
|
Product weight
| 850g / 1600g
|
Cable length
| USB 5 meters
|
