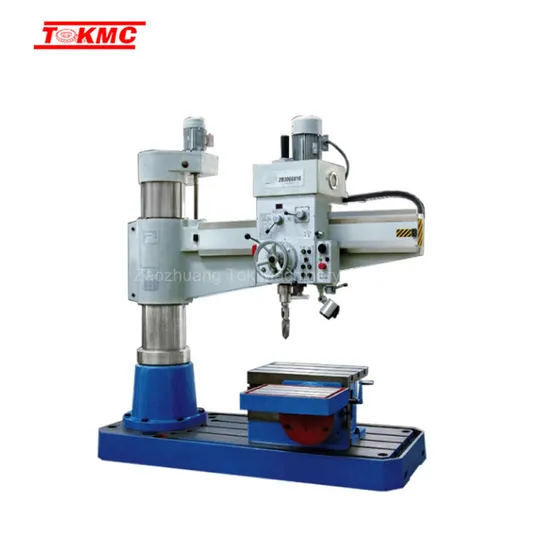

radial drilling machine ZB3060x13 /radial drilling machine factory Standard accessory:
-Wedge for taper shank tool.
Specification
| ZB3060x16
|
Max. drilling diameter(on 45 steel)
| Φ62
|
Max. drilling diameter(on HT200 cast iron)
| Φ72
|
Max. tapping diameter(on Medium-carbon steel)
| M46
|
Max. tapping diameter (on cast iron)
| M52
|
Max. distance from spindle to generating line of column
| 350-1600
|
Distance of horizontal movement for spindle box(manual)
| 1250
|
Max. distance between spindle end to the worktable surface of the base
| 350-1250
|
Max. travel of the spindle
| 315
|
Spindle taper bore
| MT.5
|
Spindle speed steps
| Stepless
|
Spindle speed range (r/min)
| 38-275;
275-2000
|
Spindle feed steps
| 8
|
Spindle feed range (mm/r)
| 0.06-1.00
|
Speed of rocker arm up and down movement (m/min)
| 1.2
|
Rotation angle of rocker arm (degree)
| ±180
|
Distance of spindle movement for calibrated dial each revolution (mm)
| 122
|
Power of main motor (transducer motor )(KW)
| 4
|
Power of motor for rocker arm up and down movement (KW)
| 1.5
|
Power of oil pump motor for spindle box, column and rocker arm clamping
| 0.75
|
Weight of machine (without worktakbe) (Kg)
| 3800
|
Machine dimension (LxWxH) (mm)
| 2490x1000x2598
|
