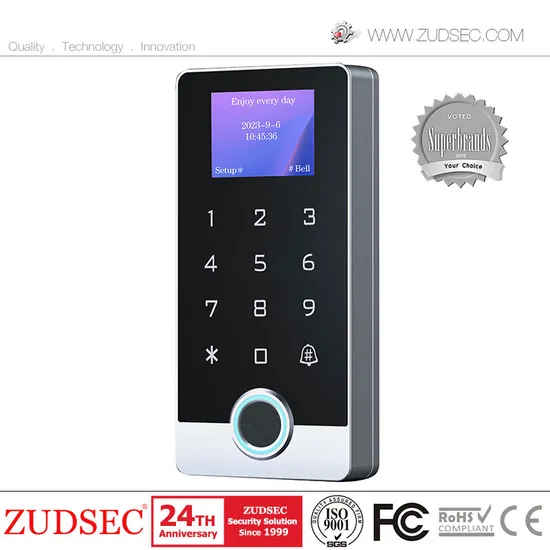

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

Product Description

Product Description
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD screen & Voice fucntion, Touch Keypad, Metal case, App Control(Optional) Anti-vandal,Multi-function standalone access controller and reader, ZudSec LCD Series is a new generation on multifunctional standalone access control.It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable . It contains reader mode and standalone access control mode etc. It's widely applied to different occasions, such as office, residential communities, villa, bank and prison etc..

-Optional model:
* ZDAC-T4FWL (Metal shell with IP68 Waterproof)
* ZDAC-T4FWL-WiFi (Metal shell with WiFi + IP68 Waterproof)
Features - Full message LCD menu configuration & voice function for easy setting
- Touch Keypad, Supporting fingerprint, ID card and password- 300 Fingerprint users, 10000 RFID users & PIN- Wiegand output, wiegand input- Besides standalone, it can connect to other controller as the salve reader- Wiegand interface: wiegand 26- Remote control / Master card for programming- Metal shell, anti-vandal design.- Anti-magnetic & lock output current short protect;- Support connecting any card readers with wiegand interface, such as HID, 13.56MHz Mifare Card, or 125KHz EM card.- Full of 2160 users, searching speed <0.1 S.- DC input: 12DC,100mA
Product Parameters Access ways:Fingerprint, card, code, multiple combinationmethods, mobile phone App (Optional)
Card Type: 125KHz Card /13.56MHz Mifare card
Keypad Characteristic: Capacitive touch keypad
Output Way: Contain reader mode, the transmission format could be adjusted by user
Access Way: Fingerprint , card,code or multiple combination methods,mobile phone App (Optional)
Admin Card: Support admin add card and admin delete card
Card Capacity: 10000
Unlock Signal: NO, NC, COM output using relay
Alarm Output: Use MOS tube output to directly drive the alarm (optional)
Operating Voltage: DC12-24V
Operating Current:≤100mA; Standby Current: ≤60mA
Operating Humidity: 0%-95%, Operating Temperature:-40ºC-60ºC
