US$12,000.00-15,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
PG-YAQ-1S PG-YAQ-2S PG-YAQ-4S
Customized
Non-Customized
Automatic Grade
Automatic
Application
Washer or Gasket Cutting
Transport Package
Plywood Carton Packing for Sea Transport
Specification
one axis two axis and
Production Capacity
20set/Year
Product Description
AUTOMATIC RUBBER WASHER OR GASKET SLEEVE VACUUM CUTTING MACHINE
APPLICATION:
This innovative machine is expertly designed for the swift and precise cutting of a variety of materials, including rubber, silicone rubber, plastic, and PTFE gaskets, washers, and sleeves. Perfectly tailored for tubular-type components, it offers unparalleled efficiency and reliability.
FEATURES:
1. Unmatched efficiency: This machine seamlessly replaces traditional molding methods, significantly reducing labor intensity and associated costs.
2. Optimal resource utilization: Ingeniously designed to conserve raw materials, thereby minimizing waste and maximizing productivity.
3. Exceptional precision: Delivering accuracy down to an impressive 0.003mm, ensuring precise cuts every time.
4. Impeccable finish: Ensures that the materials maintain a smooth, clean, and shiny appearance post-cutting, enhancing the quality of the final product.
Product Description
| Model | PG-YAQ-1S | PG-YAQ-2S | PG-YAQ-4S |
| Shaft Qty | One Shaft | Two Shafts | 4 Shafts |
| Drive Mode | Servo Motor | Servo Motor | Servo Motor |
| Cutting Efficiency | Max 60 cut/min | Max 120cut/min | Max 240cut/min |
| Speed | 0~3000r/min | 0~3000r/min | 0~3000r/min |
| Precision | ≤±0.05mm | ≤±0.05mm | ≤±0.05mm |
| Cut Diameter Range | Φ10mm~Φ150mm | Φ10mm~Φ120mm | Φ10mm~Φ110mm |
| Cutting Length | ≤200mm | ≤200mm | ≤150mm |
| Wall Thickness | ≤20mm | ≤20mm | ≤20mm |
| Blade Spec | (1)Round Blade:Φ60×Φ25.4×Φ0.35mm | (1)Round Blade:Φ60×Φ25.4×Φ0.35mm | (1)Round Blade:Φ60×Φ25.4×Φ0.35mm |
| Consumption of Air | 50L/min | 50L/min | 50L/min |
| Pressure | 0.5MPa~0.8MPa | 0.5MPa~0.8MPa | 0.5MPa~0.8MPa |
| Vacuum Level | ≤-0.035MPa | ≤-0.035MPa | ≤-0.035MPa |
| Power Supply | AC220V±5% 50/60Hz | AC220V±5% 50/60Hz | AC220V±5% 50/60Hz |
| Gross Power | 1KW | 2KW | 3KW |
| Weight | ≈400Kg | ≈580Kg | ≈800Kg |
| Dimension(L*W*H) | 1350mm×980mm×1400mm | 1550mm×980mm×1650mm | 1650mm×980mm×17650mm |

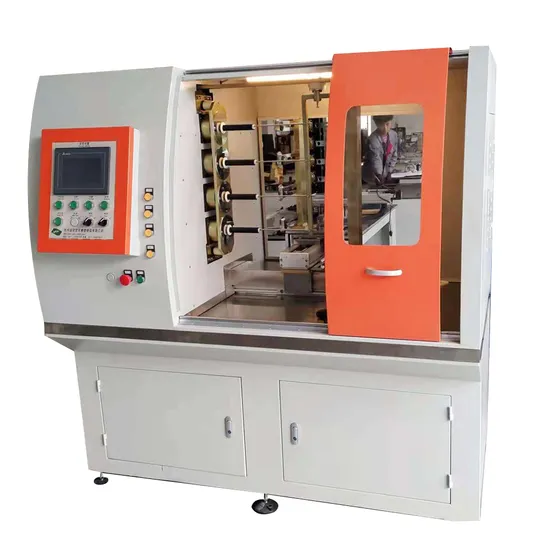

Machine Picture and Workshop Photos
Products After Cutting
>>
