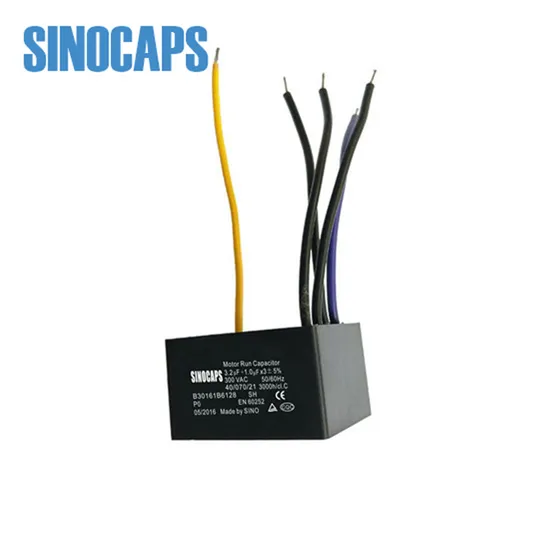

Cbb61 Fan Capacitor Switch Capacitor Cbb61 Speed Regulating Capacitor 350V 500V

Product Description

SINOCAPS Fan capacitor:
Detailed product description:
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area

Main feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.

Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.

Motor running capacitor:
Capacitance Range	1μF~150μF
Rated Voltage	250VAC~500VAC(50/60Hz)
Capacitance Tolerance	±5% or Fulfilled upon request
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Standard Temperature	-25ºC~+70ºC,-40ºC~+85ºC
Climate Class	25/70/21, 40/85/21
Test Voltage	Between terminals	AC≥2.00Un 2S NO BREAKDOWN
	Between terminals and case	AC≥2000V 2S NO BREAKDOWN
Insulation Resistance	Between terminals	Rj·C≥3000MΩ.μF
	Between terminals and case	Rj≥1000 MΩ.μF
Security Level	P0, P1, P2
Executing Standard	GB/T3667.1-2005, IEC60252-1:2001, IEC252

---
