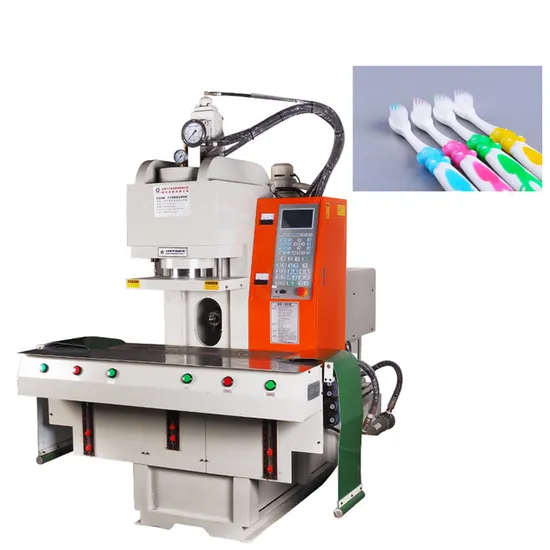

High Production Tooth Brush Handle Injection Molding Machine Price

Product Description

toothbrush injection molding machine price
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and
efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine:

JY-550C-DM Technique specification
Model		Units	JY-550C-DM
Injection System	Screw Diameter	mm	Φ38	Φ42
	Injection Pressure	Kg/cm2	1454	1190
	Theoretical Shot volume	cm3	215.4	263
	Max. Shot Weight(P.S)	g/Oz	203.5/7.17	248.6/8.77
	Injection Rate	cm3/s	100/122.2
	Max.Screw speed	rpm	0-180
	Temperature Control	ZONE	4
Clamping System	Clamping Force	T	55
	Platen Size	mm	1200*280
	Max. Mold Size	mm	500*250
	Min Mold Height	mm	175
	Opening Stroke	mm	200
	Max. Open Daylight	mm	375
	Ejector Force	T	1.5
	Ejector stroke	mm	100
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140
	Oil Tank Capacity	L	160
	Pump Motor Power	Kw	7.5
	Barrel Heating Power	Kw	4.35
	Total Wattage	Kw	11.85
Others	Machine Dimensions (L*W*H)	m	3.1*2*2.25
	Machine Weight	T	3.3

Send me inquiry, We promise to give an additional six month free warranty.
Total 18 months warranty.

Machine Details:

We can customize according to your requirements.
If you require any further information, feel free to contact me.
Machine Main Products:
RFQ:

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

toothbrush injection molding machine price
Welcome to visit our factory to view more details.

---
